Genetic and structural analysis of the essential fission yeast RNA polymerase II CTD phosphatase Fcp1

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 4.
FIGURE 4.

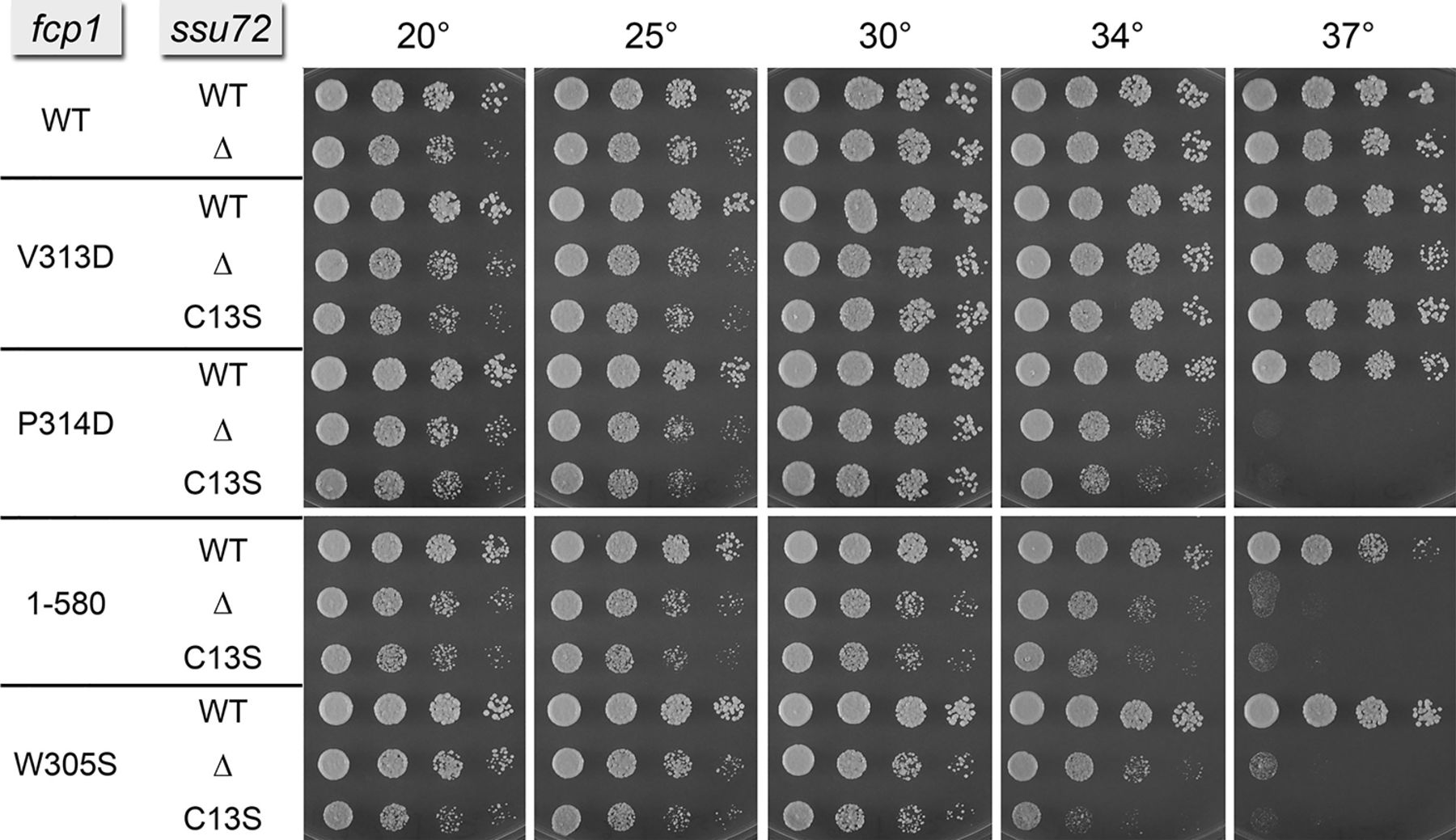

Synthetic genetic interaction of Fcp1 mutations with null mutants of Ssu72. Haploid fcp1–hygMX strains were mixed with ssu72+–kanMX (WT), ssu72::kanMX (Δ), or ssu72-(C13S)–kanMX strains (Schwer et al. 2012) of the opposite mating type on malt agar for mating and sporulation, after which hygR kanR haploids with the indicated genotypes were recovered. Exponentially growing cultures of the strains specified were adjusted to A600 of 0.1 and aliquots of serial fivefold dilutions were spotted to YES agar and incubated at the indicated temperatures.

This Article

  1. RNA 21: 1135-1146
