Prp40 pre-mRNA processing factor 40 homolog B (PRPF40B) associates with SF1 and U2AF65 and modulates alternative pre-mRNA splicing in vivo

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 3.
FIGURE 3.

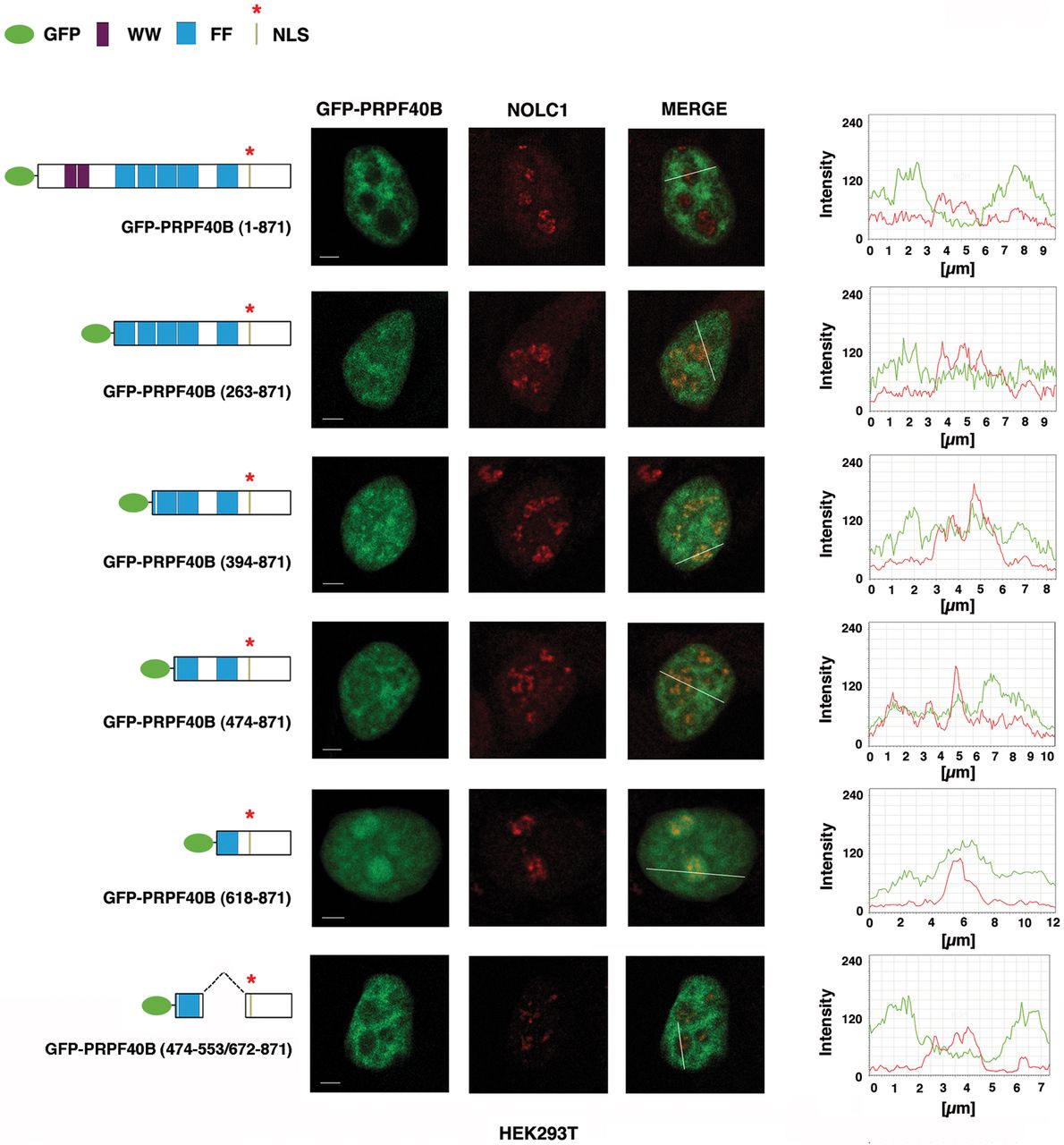

Role of PRPF40B FF domains in nucleolar exclusion. HEK293T cells expressing EGFP-tagged PRPF40B proteins (green) were immunolabeled with anti-NOLC1 antibodies (red). Individual and merged images of the cells are shown. Line scans showing the local intensity distribution of the dual staining are represented to the right of the panels. Labeling in the figure is the same as in the Figure 2 legend. Bar, 3 mm.

This Article

  1. Published in Advance January 20, 2015, doi: 10.1261/rna.047258.114 RNA 21: 438-457
