Dual functions of Macpiwi1 in transposon silencing and stem cell maintenance in the flatworm Macrostomum lignano

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

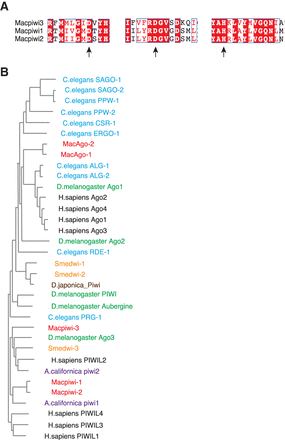

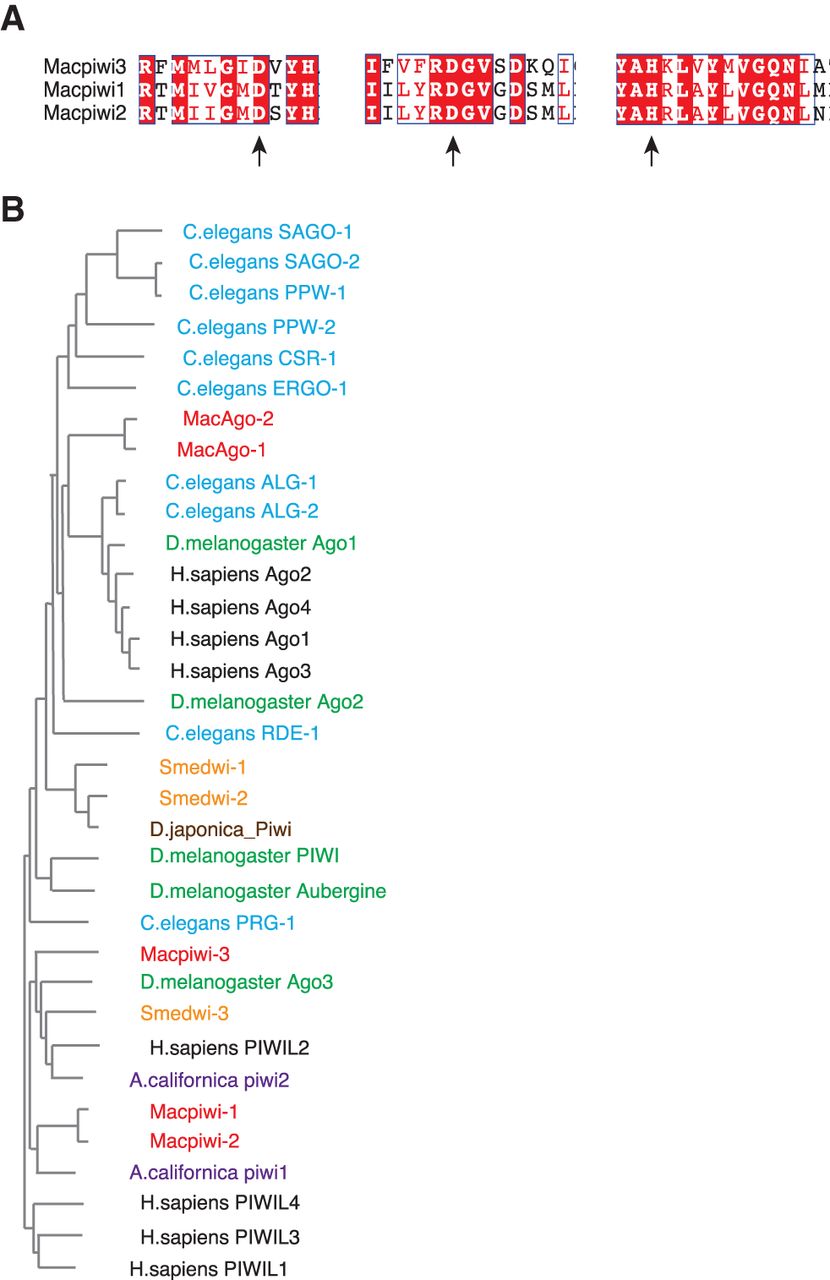

Ago/PIWI proteins are present in M. lignano. (A) Protein sequence alignment of Macpiwi1, Macpiwi2, and Macpiwi3 catalytic triads, DDH. Arrows point to the catalytic residues. Identical (white letters on a red background) or similar (red letters on a white background) residues are labeled. (B) A phylogenetic tree depicting the relationship between Ago/PIWI proteins in M. lignano (red), C. elegans (blue), S. mediterranea (orange), D. melanogaster (green), A. californica (purple), Dugesia japonica (brown), and Homo sapiens (black).
