RNAs nonspecifically inhibit RNA polymerase II by preventing binding to the DNA template

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

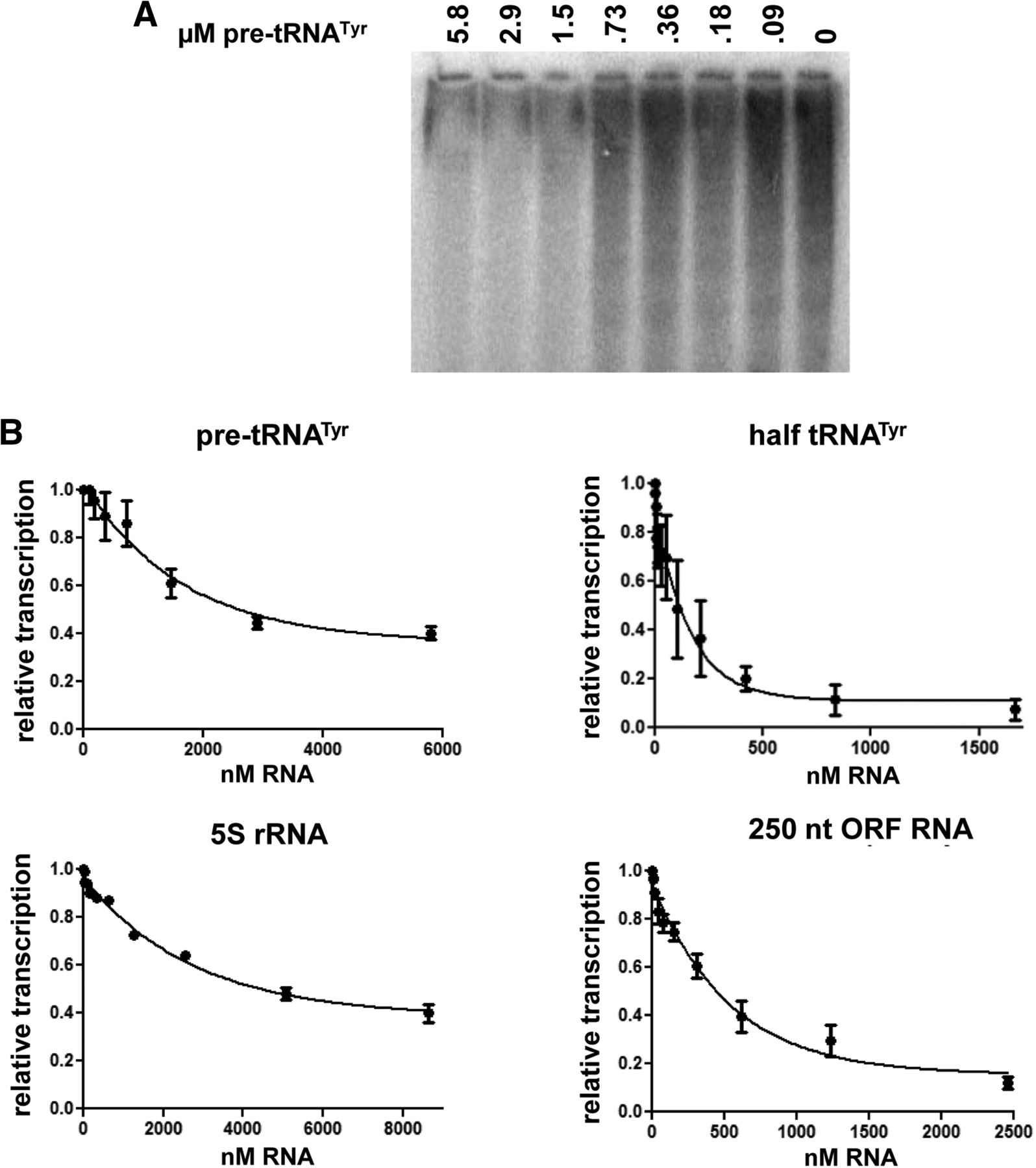

Preincubation of Pol II with RNAs inhibits transcript formation. (A) Inhibition of Pol II transcription by pre-tRNATyr. Indicated amounts of pre-tRNATyr were incubated with a constant amount of Pol II (30 nM) for 15 min at 30°C. The Pol II-RNA complex was then incubated with plasmid DNA template and then added to NTPs. Reactions proceeded for 25 min and then were boiled in formamide and loaded onto a 10% denaturing gel. (B) The reaction in A was repeated in triplicate for four different RNAs. The total radioactive signal per lane was quantitated and plotted.
