A tRNA body with high affinity for EF-Tu hastens ribosomal incorporation of unnatural amino acids

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

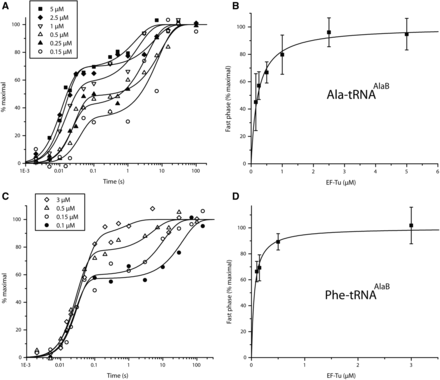

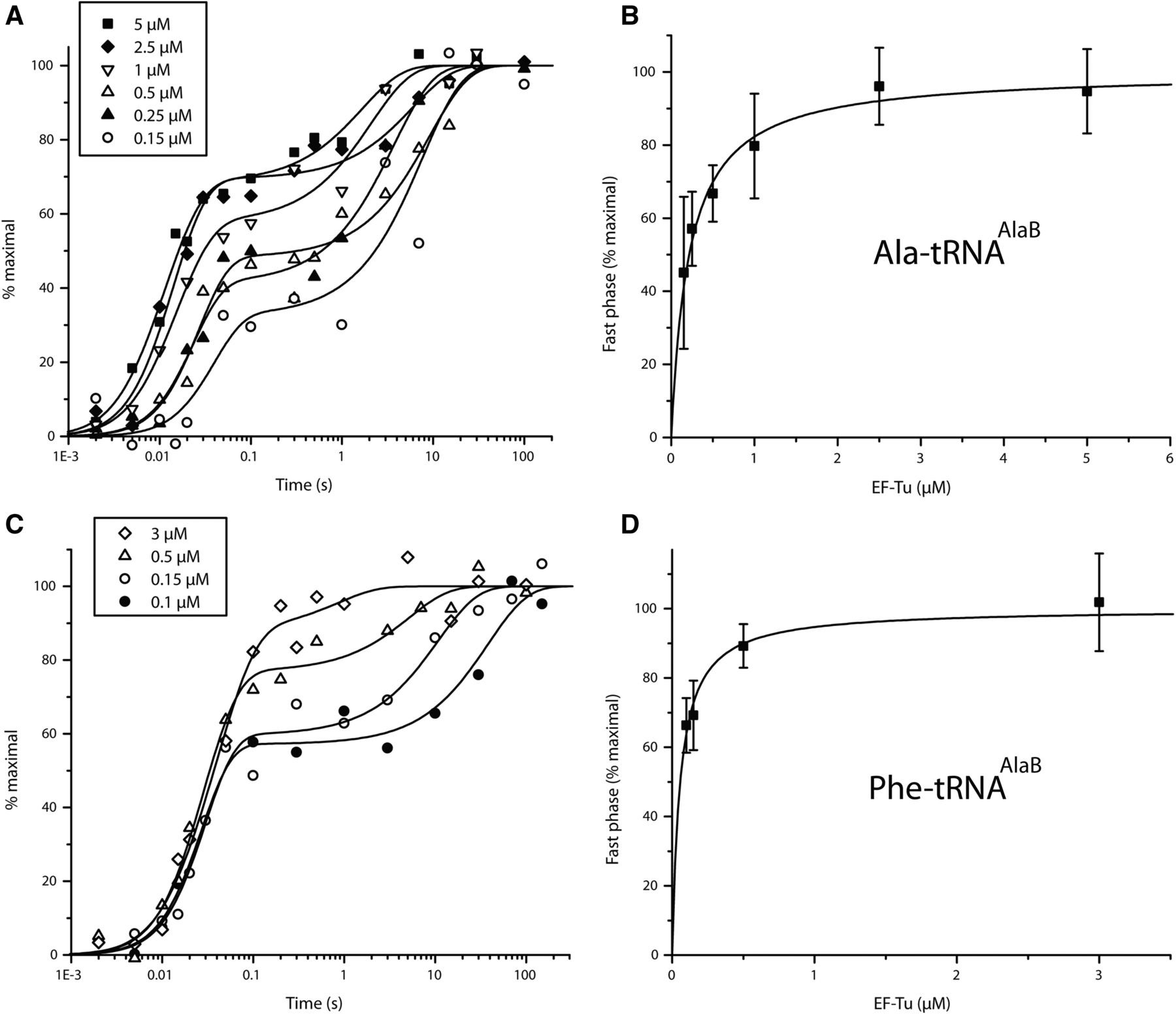

FIGURE 2.
FIGURE 2.

Effects of EF-Tu concentration on the kinetics of dipeptide synthesis from fMet-tRNAifMet and Ala-tRNAAlaB (A,B) or Phe-tRNAAlaB (C,D). Left: Time course (normalized) of f[3H]Met-Ala (A) or f[3H]Met-Phe (C) dipeptide formation at different EF-Tu concentrations in the reaction mixture. Right: (B,D) Hyperbolic fitting of the dependence of the fast phase fraction of the dipeptide formation (A,C) on EF-Tu concentrations. Kd for the binding of Ala-tRNAAlaB and Phe-tRNAAlaB to EF-Tu:GTP were estimated as 0.22 and 0.056 µM, respectively, from the fit. Experiments were done in LS3 buffer at 37°C (see Materials and Methods).
