Structural insights into translational recoding by frameshift suppressor tRNASufJ

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

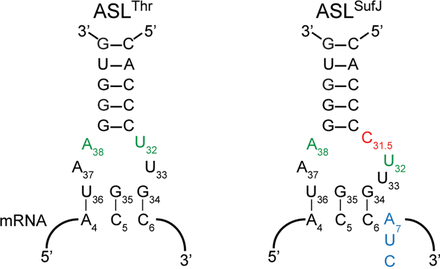

FIGURE 2.
FIGURE 2.

Frameshift suppressor tRNASufJ is a derivative of tRNAThr. Secondary structure representation of the anticodon stem–loops of tRNAThr and frameshift suppressor tRNASufJ interacting with their respective codons. The C31.5 insertion (red) in ASLSufJ is 5′ to the anticodon nucleotides 34, 35, and 36 causing the codon to increase from three to four nucleotides (blue). The conserved U32·A38 interaction (green) in tRNAThr may be altered in tRNASufJ due to the insertion.

This Article

  1. Published in Advance October 28, 2014, doi: 10.1261/rna.046953.114 RNA 20: 1944-1954
