miRNAome analysis of the mammalian neuronal nicotinic acetylcholine receptor gene family

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

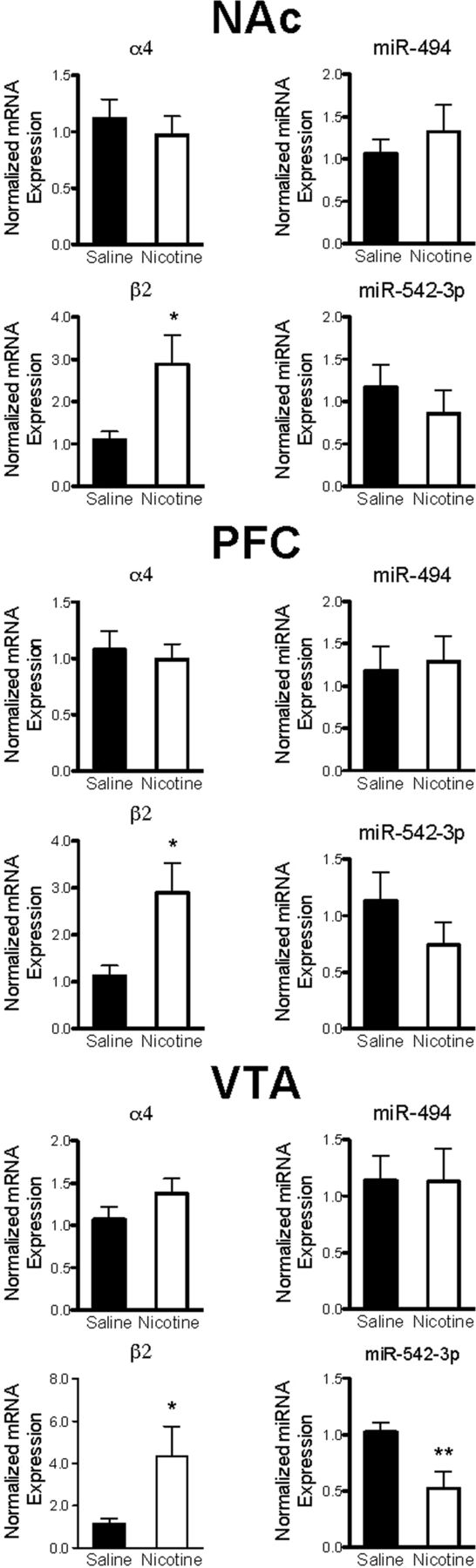

FIGURE 3.
FIGURE 3.

Reciprocal relationship between miR-542-3p and nAChR β2 transcript levels in the mesocorticolimbic reward pathway following nicotine treatment. RNA was isolated from the indicated brain regions from animals treated with saline or nicotine as described in Materials and Methods. qRT-PCR was carried out for miR-494, miR-542-3p, nAChR α4, and nAChR β2 transcripts as indicated. Student's t-test was used for statistical analysis, (*) P < 0.05, (**) P < 0.01; n = 6.
