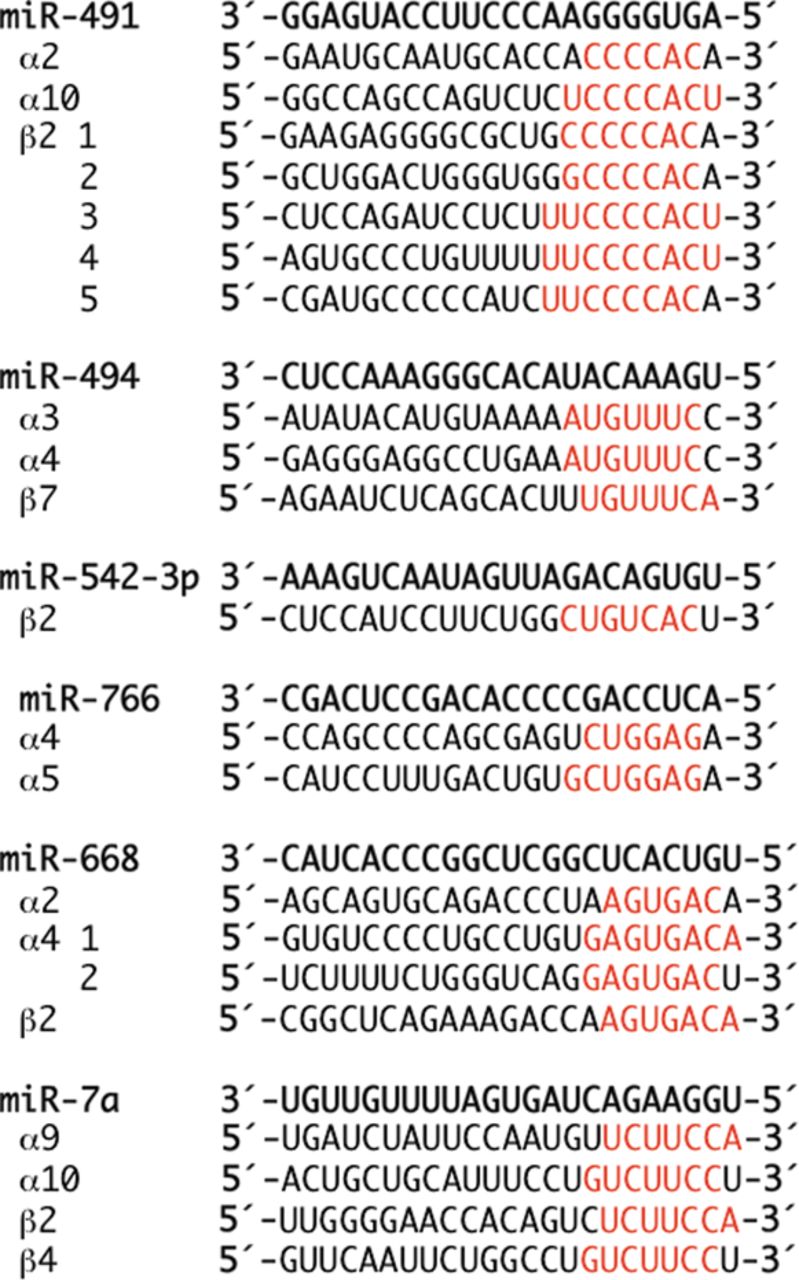

FIGURE 2.
MREs in human nAChR subunit 3′ UTRs. Six of the miRNAs that were determined from the large-scale screen to regulate mouse nAChR 3′ UTRs (Fig. 1, Supplemental Table 1) have potential MREs in several human nAChR subunit 3′ UTRs. The six miRNAs are indicated in bold. The seed match site in each human nAChR subunit 3′ UTR is shown in red and is aligned to the seed region of the miRNA. In the case where a 3′ UTR has multiple predicted MREs, each site is designated by a number in order of location moving in a 5′–3′ direction.
