FIGURE 3.

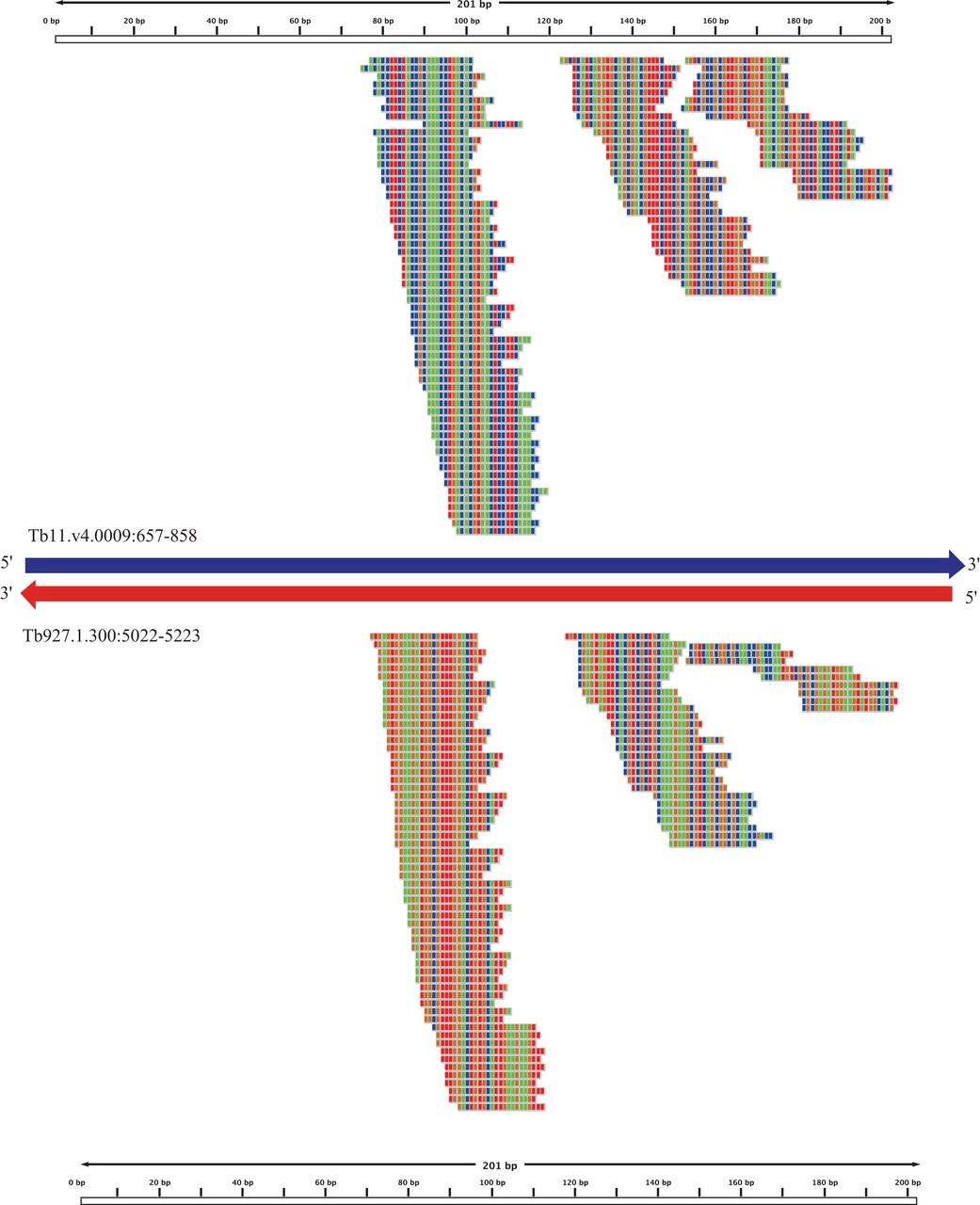

Examples of small RNAs derived from a NAT pair. Long arrows indicate two NAT transcripts: Blue represents the sense transcript and red represents the antisense one; arrows point in the direction of transcription (5′ to 3′). The locations of small RNAs mapped to the overlap regions of the two transcripts were drawn by Integrative Genomics Viewer (IGV) (Thorvaldsdóttir et al. 2013). Thin lines above and below the arrows display the reads originated from sense and antisense, respectively. The colors indicate nucleotide type in the transcripts (green, A; blue, C; yellow, G; red, U).
