Kinetic mechanism of nick sealing by T4 RNA ligase 2 and effects of 3′-OH base mispairs and damaged base lesions

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

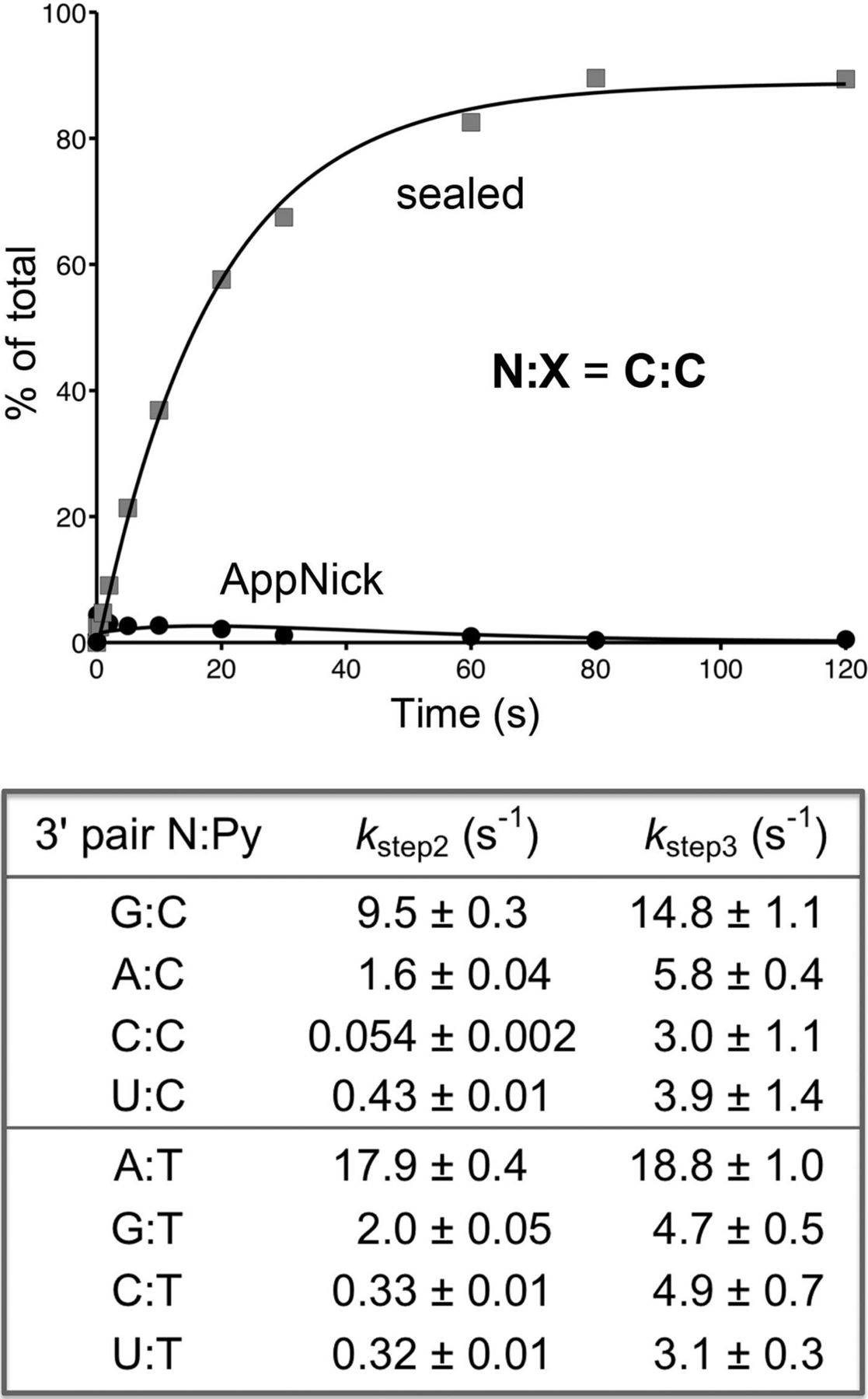

FIGURE 3.
FIGURE 3.

Effects of 3′-OH N:pyrimidine mispairs on the kinetics of nick sealing. (Top panel) The distributions of radiolabeled AppNick intermediate and sealed product during the reaction of Rnl2 at a 3′ C:C mispaired nick are plotted versus time. Each datum is the average of three separate kinetic experiments. The curve fits to the kinetic scheme are shown. (Bottom panel) The step 2 and step 3 rate constants for sealing nicks with the indicated 3′-OH N:pyrimidine configurations.

This Article

  1. RNA 19: 1840-1847
