Structural and thermodynamic signatures that define pseudotriloop RNA hairpins

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

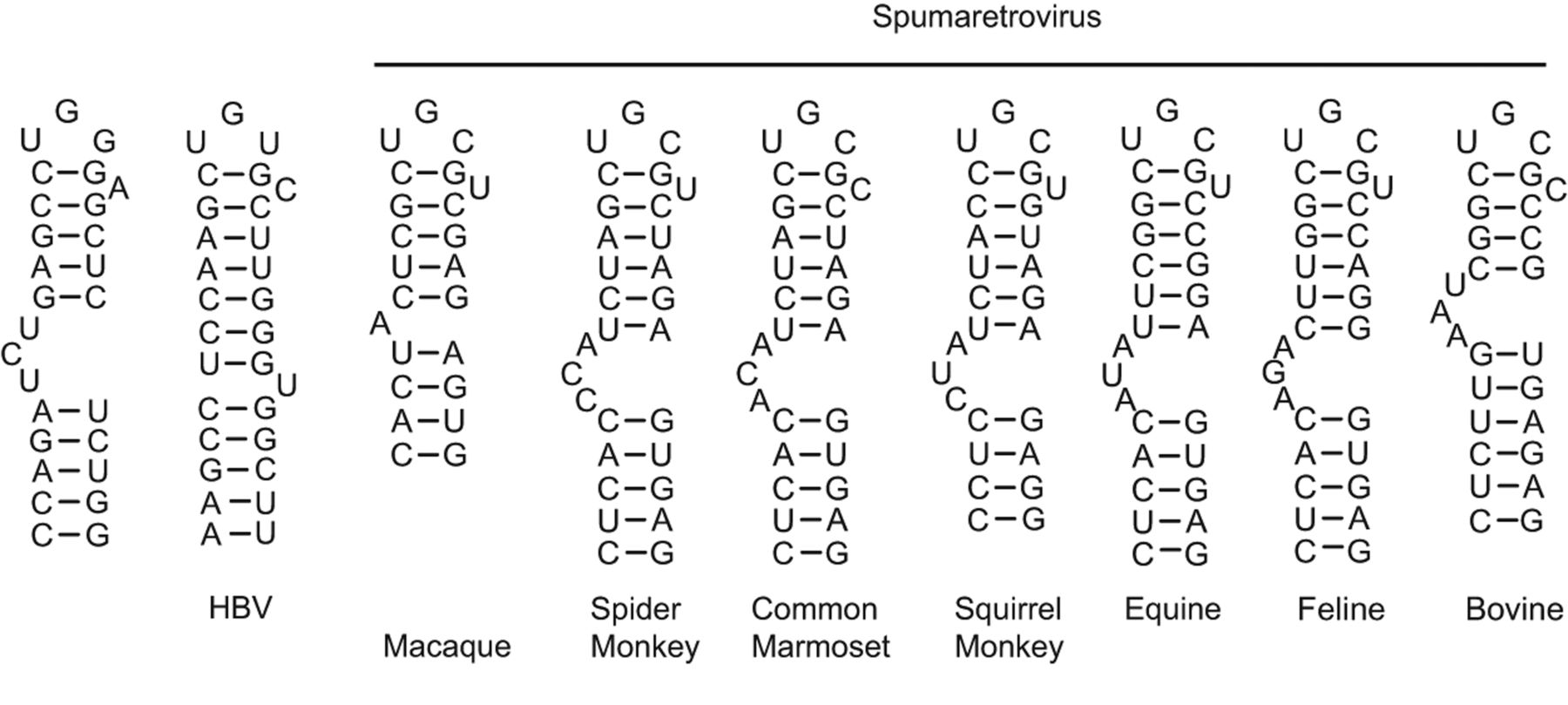

FIGURE 5.
FIGURE 5.

Conservation of PTL structure in spumaretroviruses. Structure of retroviral HIV-1 TAR and HBV ɛ hairpins is shown for comparison. Human foamy virus (GenBank accession number M54978), simian foamy virus (JQ867462), macaque simian foamy virus (JN801175), spider monkey foamy virus (EU010385), common marmoset foamy virus (GU356395), squirrel monkey foamy virus (GU356394), equine foamy virus (AF201902), feline foamy virus (KC292055), bovine foamy virus (JX307862).

This Article

  1. Published in Advance October 24, 2013, doi: 10.1261/rna.039636.113 RNA 19: 1833-1839
