Structural and functional analysis of Utp23, a yeast ribosome synthesis factor with degenerate PIN domain

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 6.
FIGURE 6.

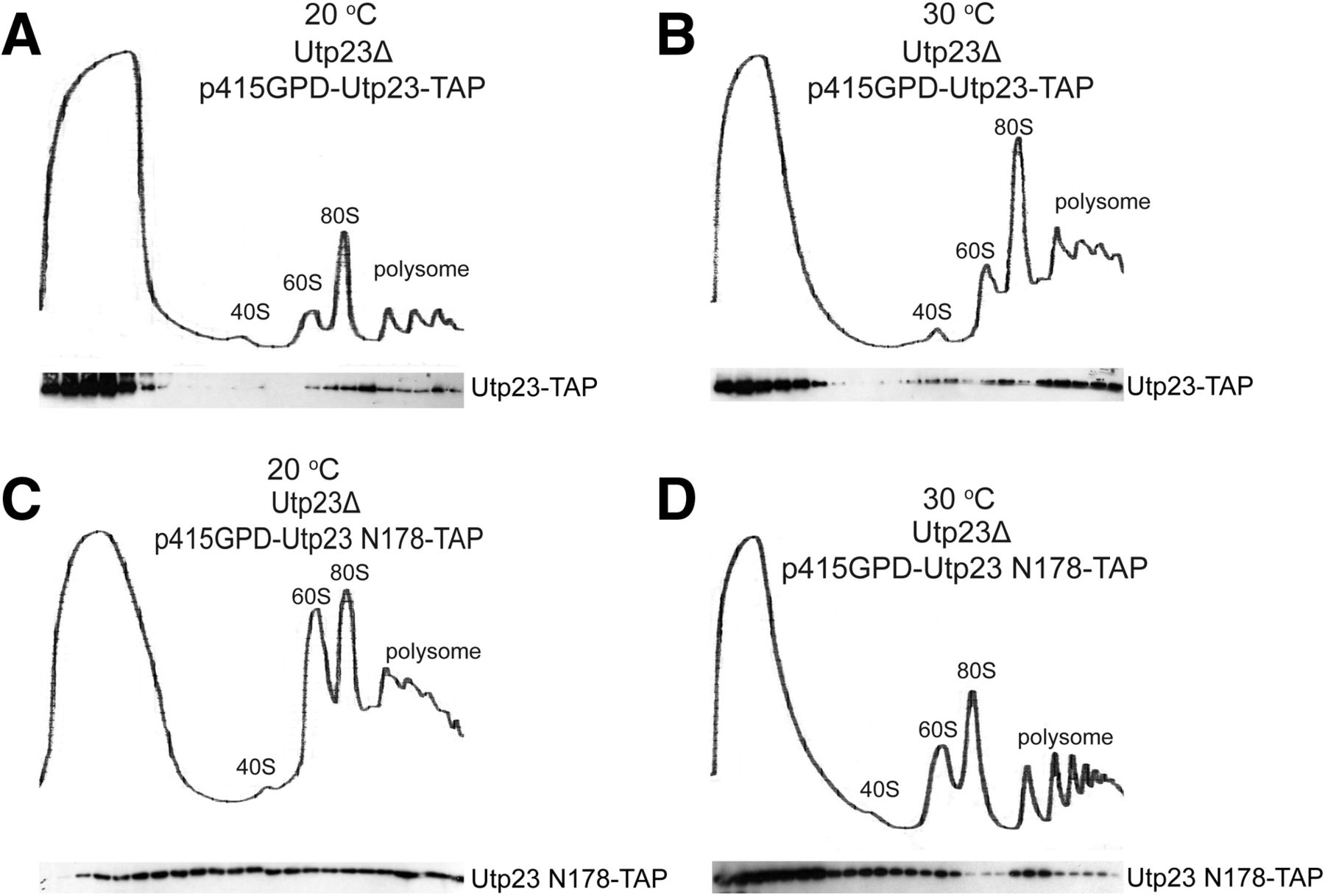

Sedimentation behavior of Utp23 and the N178 mutant. The utp23Δ strains expressing Utp23-TAP (A,B) or its N178 mutant (C,D) from a GPD-driven plasmid were grown at 30°C (B,D) or 20°C (A,C). The cell extracts were fractionated on 7%–50% sucrose gradients, and Utp23-TAP was detected using PAP. The ribosome profiles were recorded at 254 nm.

This Article

  1. Published in Advance October 23, 2013, doi: 10.1261/rna.040808.113 RNA 19: 1815-1824
