Prp2-mediated protein rearrangements at the catalytic core of the spliceosome as revealed by dcFCCS

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

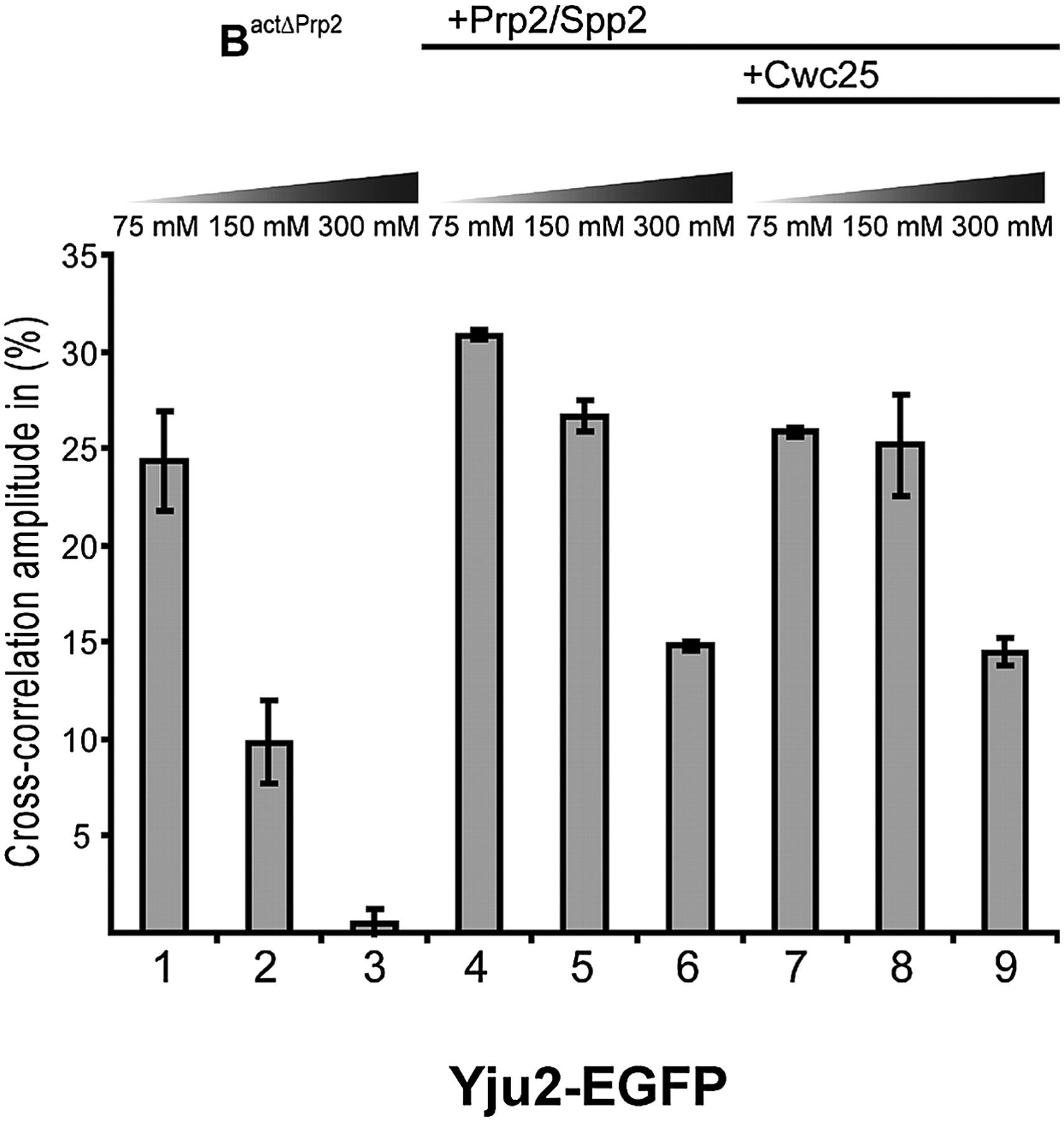

FIGURE 6.
FIGURE 6.

Strengthening of binding of Yju2-EGFP to the spliceosome upon catalytic activation. Affinity-purified BactΔPrp2 complexes assembled on Atto647N-M3Act, carrying Yju2-EGFP (columns 1–3), were complemented with Prp2, Spp2, and ATP (columns 4–6), or with Prp2, Spp2, ATP, and Cwc25 (columns 7–9). After standard incubation, increasing concentrations of KCl were added.

This Article

  1. Published in Advance April 25, 2012, doi: 10.1261/rna.033316.112 RNA 18: 1244-1256
