A 5′-terminal phosphate is required for stable ternary complex formation and translation of leaderless mRNA in Escherichia coli

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

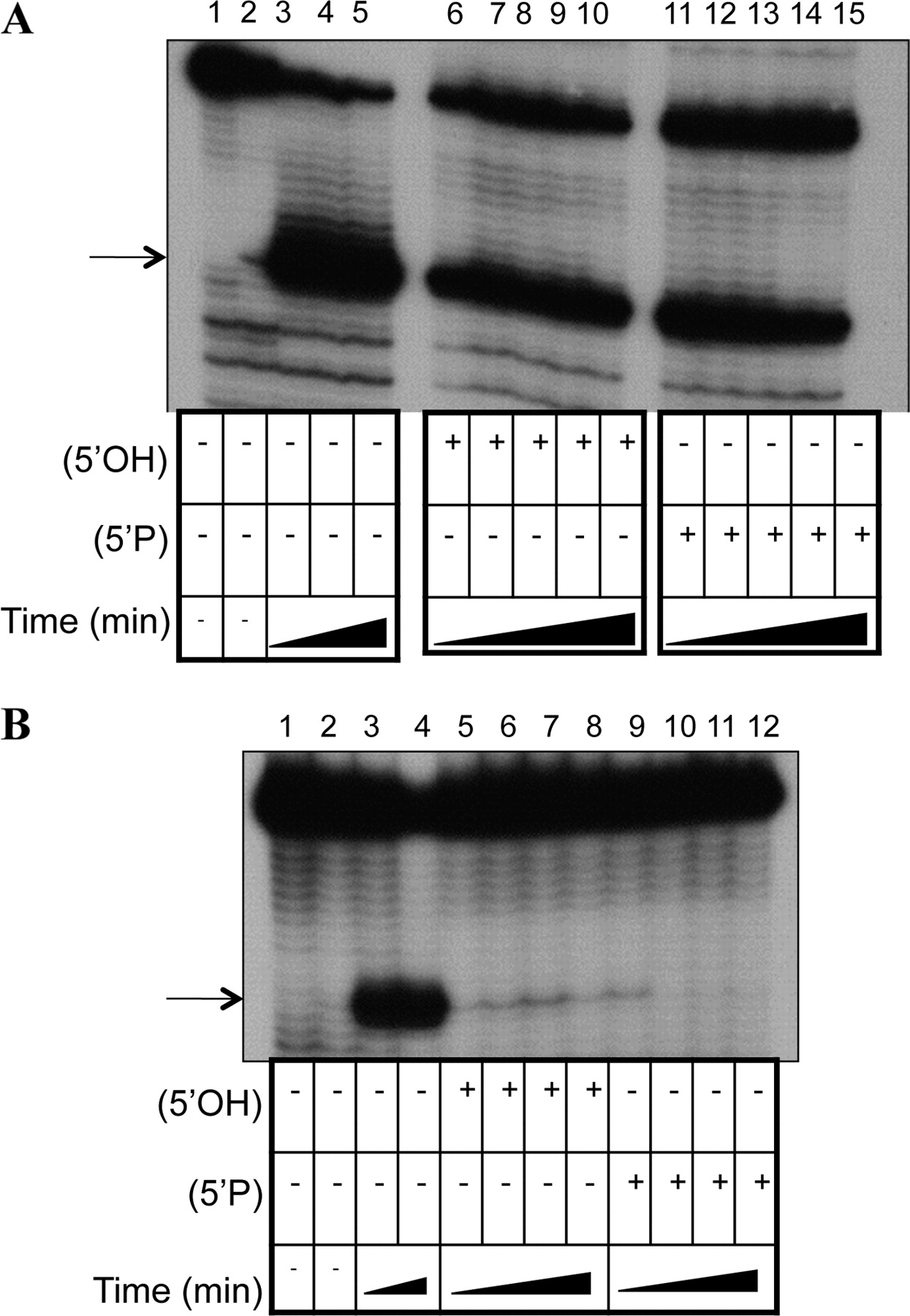

FIGURE 7.
FIGURE 7.

Competition primer extension inhibition (toeprint) analysis of LL cI-lacZ mRNA bound to 70S ribosomes with or without tRNAfMet. Prebound ternary complexes containing LL cI-lacZ mRNA with a 5′-monophosphate (A) or 5′-hydroxyl (B) are challenged with excess competitor mRNA containing a 5′-hydroxyl or a 5′-monophosphate. (A) Stability of ternary complexes containing 5′-phosphate LL mRNA. Lane 1 excludes ribosomes, and lane 2 excludes tRNAfMet. (Lanes 3–5) The ternary complex incubated for 0, 20, and 30 min after the initial binding, respectively, with no addition of competitor mRNA. (Lanes 6–10) A 5′-hydroxyl LL mRNA competitor (20X) was added 15 min after initial ternary complex formation with primer-annealed 5′phosphate mRNA (1X). (Lanes 11–15) A 5′-phosphate LL competitor mRNA (20X) was added 15 min after initial ternary complex formation with primer-annealed 5′phosphate mRNA (1X). Reverse transcription was initiated at 0, 5, 10, 20, or 30 min after the competitor addition. (B) Stability of ternary complexes containing 5′-hydroxyl LL mRNA. Lane 1 excludes ribosomes, and lane 2 excludes tRNAfMet. (Lanes 3,4) The ternary complex incubated for 0 and 20 min, respectively, after the complex formation, with no addition of competitor mRNA. (Lanes 5–8) A 5′-hydroxyl LL mRNA competitor (20X) was added to the reactions; (lanes 9–12) a 5′-phosphate LL mRNA competitor (20X) was added 15 min after initial ternary complex formation with primer-annealed 5′hydroxyl mRNA (1X). Reverse transcription was initiated at 0, 5, 10, and 20 min after the competitor addition. The position of the toeprint signals are identified by arrows.
