A 5′-terminal phosphate is required for stable ternary complex formation and translation of leaderless mRNA in Escherichia coli

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

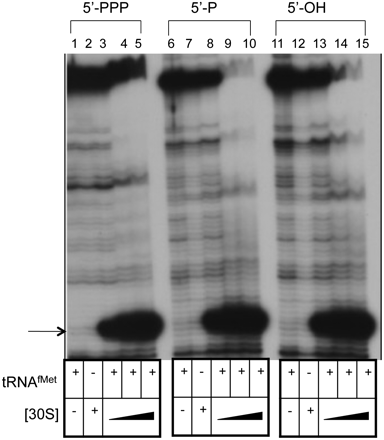

FIGURE 4.
FIGURE 4.

Primer extension inhibition (toeprint) analysis of 30S subunit binding to SDL cI-lacZ mRNA with a 5′-triphosphate (lanes 1–5), a 5′-monophosphate (lanes 6–10), or a 5′-hydroxyl (lanes 11–15). Lanes 1, 6, and 11 omit 30S subunits, and lanes 2, 7, and 12 omit tRNAfMet (1 μM when included). (Lanes 3,8,13) 30S subunit concentration (88 nM) is twofold higher than mRNA (44 nM) concentration. (Lanes 4,9,14) 30S subunit concentration (264 nM) is sixfold higher than mRNA concentration. (Lanes 2,5,7,10,12,15) 30S subunit concentration (528 nM) is 12-fold higher than mRNA concentration. The position of the toeprint signal is identified by an arrow.

This Article

  1. Published in Advance January 30, 2012, doi: 10.1261/rna.027698.111 RNA 18: 508-518
