Role of helix 44 of 16S rRNA in the fidelity of translation initiation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

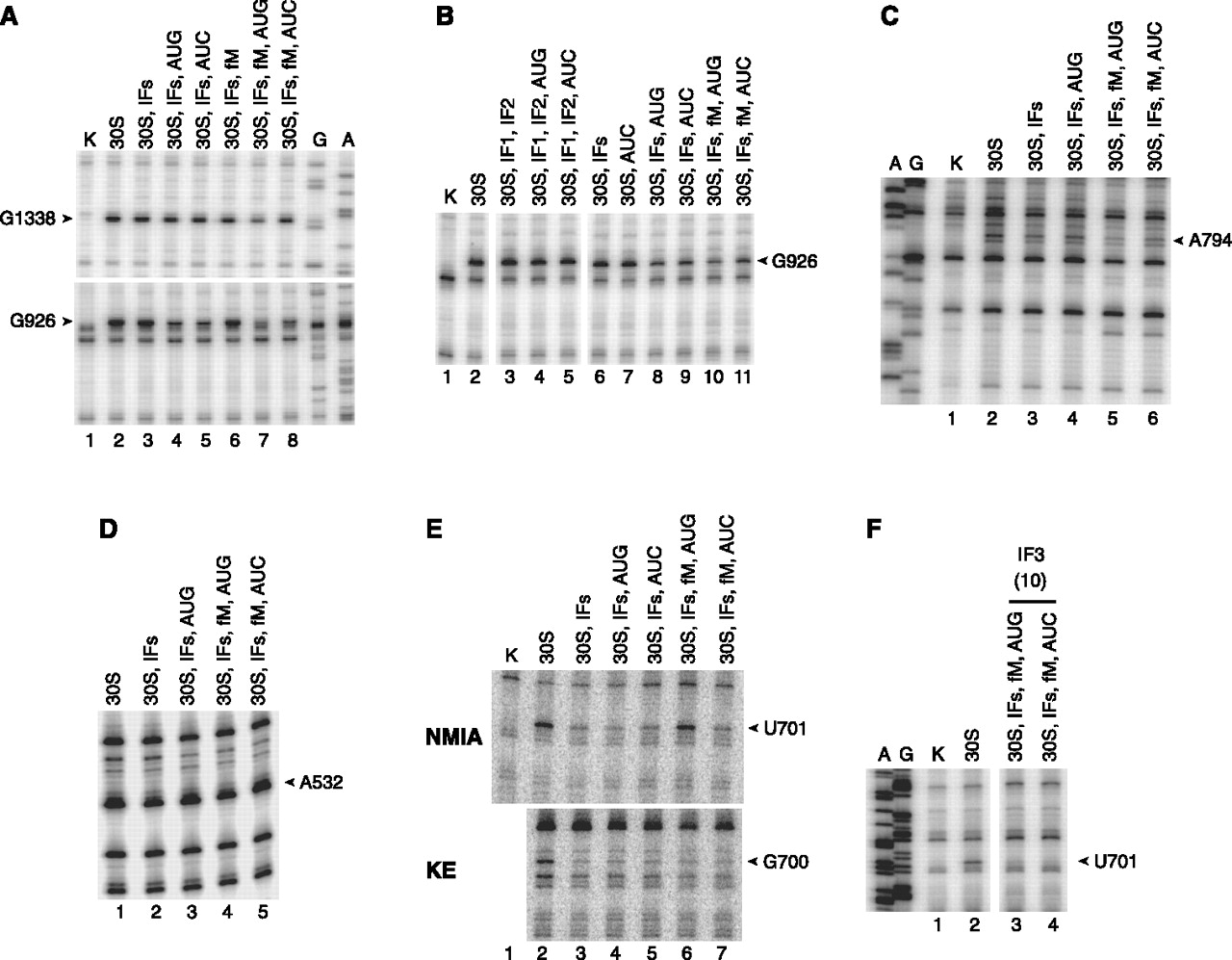

FIGURE 3.
FIGURE 3.

Other 16S rRNA nucleotides exhibiting differential reactivity in complexes with AUG versus AUC. Data are presented as described in the legend to Figure 2. (A,B) KE probing of the 1338 and 926 regions. (C,D) DMS probing of the 794 and 532 regions. (E) NMIA and KE probing of the 700 region. (F) NMIA probing of the 700 region in the presence of 10 μM IF3.

This Article

  1. Published in Advance January 25, 2012, doi: 10.1261/rna.031203.111 RNA 18: 485-495
