FIGURE 7.
FIGURE 7.

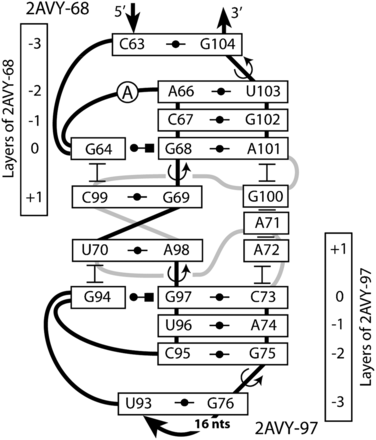

A-DTJ: the common head-to-head arrangement of 2AVY-68 and 2AVY-97. The double helix composed of base pairs G69-C99 and U70-A98 plays the role of helix H1 for each of the two motifs. Nucleotides A72, A71, and G100 form a continuous stack, which interacts with the minor groove of helix H2, thus stabilizing the TJ1 of both A-DTJs.

This Article

  1. Published in Advance October 11, 2012, doi: 10.1261/rna.030940.111 RNA 18: 2287-2298
