Trmt61B is a methyltransferase responsible for 1-methyladenosine at position 58 of human mitochondrial tRNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

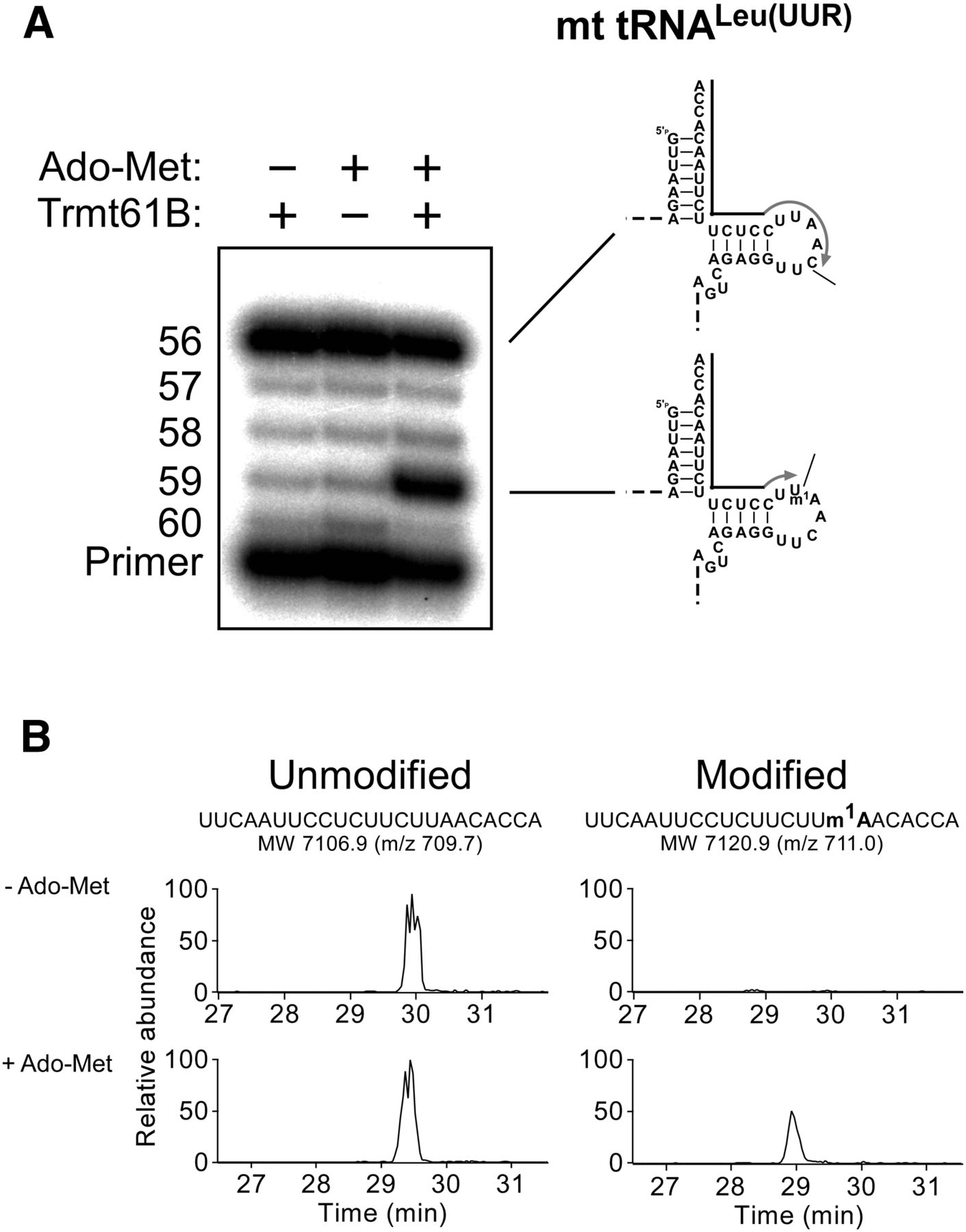

In vitro reconstitution of m1A58 with recombinant Trmt61B. (A) m1A58 in the tRNALeu(UUR) transcript was detected by primer extension. (B) LC/MS analysis of RNase T1–digested fragments of the tRNALeu(UUR) transcript. Mass chromatograms detecting [M-10H]10− ions for the unmodified 23-mer fragment (positions 54–76, m/z 709.7, and MW 7106.9) and the 23-mer fragment containing a single methyl group (m/z 711.0 and MW 7120.9).

This Article

  1. Published in Advance October 24, 2012, doi: 10.1261/rna.035600.112 RNA 18: 2269-2276
