Trmt61B is a methyltransferase responsible for 1-methyladenosine at position 58 of human mitochondrial tRNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

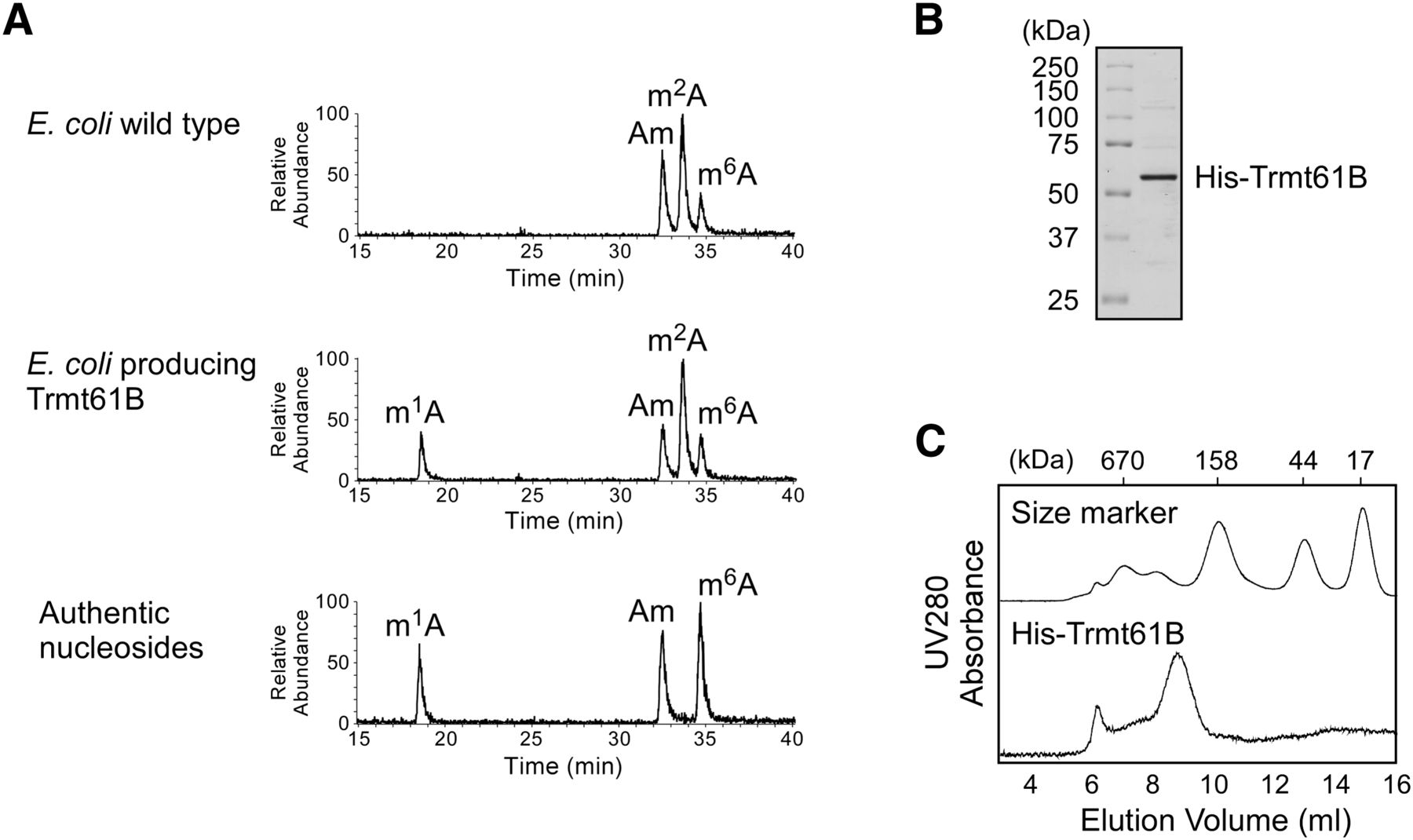

FIGURE 4.
FIGURE 4.

Trmt61B is responsible for m1A formation in E. coli cells. (A) LC/MS analysis of total tRNA nucleosides from E. coli rosetta cells (top panel) and His-Trmt61B–expressing E. coli rosetta strain (middle panel). Mass chromatograms detecting MH+ (m/z 282) of m1A, Am, m2A, and m6A are shown. Synthetic nucleosides (m1A, Am, and m6A) were also analyzed as a control (bottom panel). (B) Purified His-Trmt61B was resolved by SDS-PAGE and stained with Coomassie brilliant blue. The protein size marker is indicated. (C) Elution profile (UV trace at 280 nm) of His-Trmt61B (bottom) with protein size marker (top) in gel filtration chromatography.

This Article

  1. RNA 18: 2269-2276
