Mutational analysis of Trypanosoma brucei editosome proteins KREPB4 and KREPB5 reveals domains critical for function

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

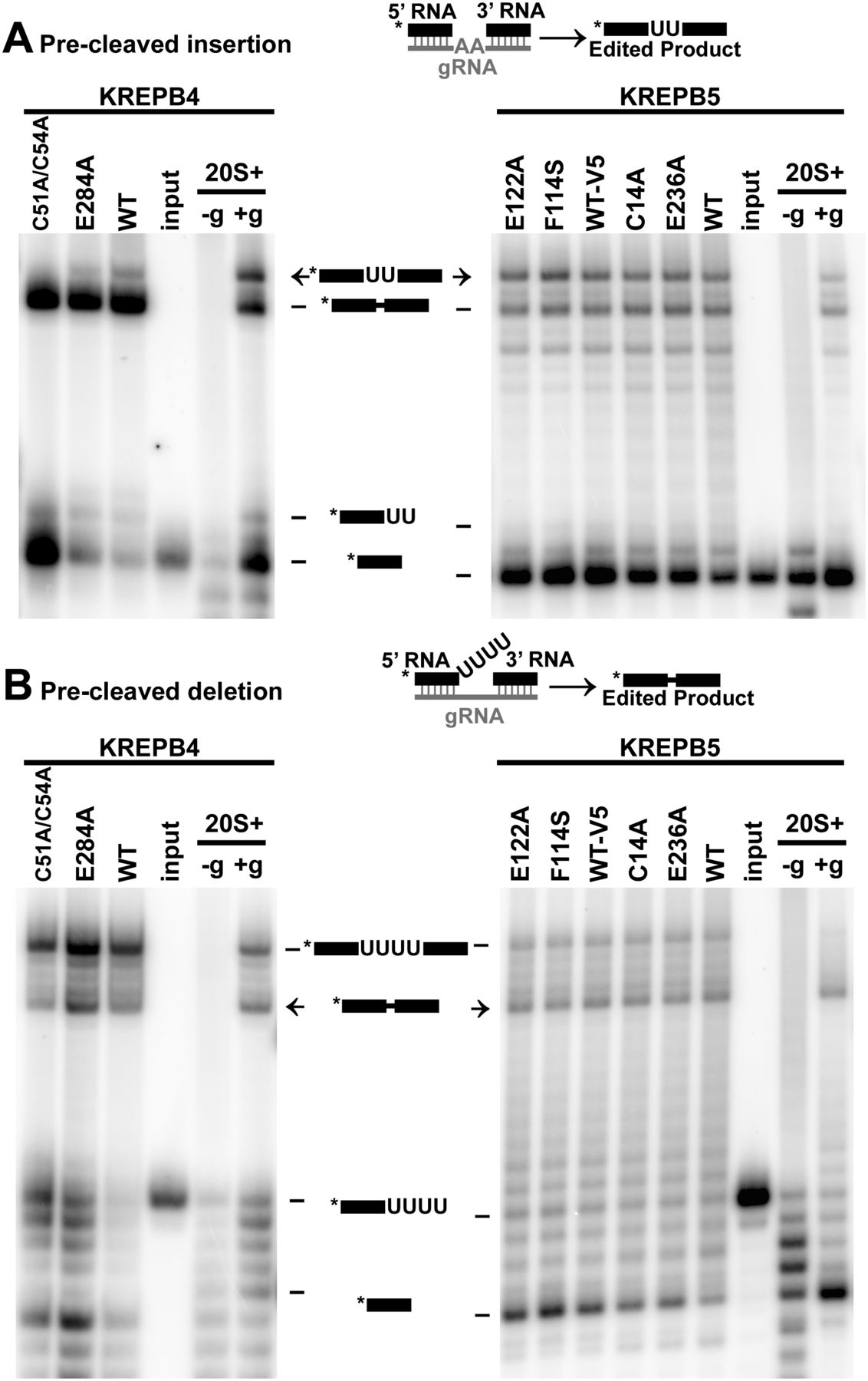

FIGURE 5.
FIGURE 5.

TAP-isolated KREPB4 and KREPB5 complexes retain precleaved editing activity. Editing activity on input RNA is only observed in the presence of guide RNA (+g), not in its absence (−g). Positive control activity (20S+) was obtained using a ∼20S fraction from gradient fractionated mitochondrial or whole-cell lysate. Asterisks in schematics denote location of radiolabel. Arrows indicate edited product. (A) Precleaved insertion assay of complexes isolated via KREPB4 wild type (WT), C51A/C54A, and E284A (left panel) or via KREPB5 wild type, C14A, E236A, V5-tagged wild type (WT-V5), F114S, and E122A (right panel). (B) Precleaved deletion cleavage assay of complexes described above.

This Article

  1. RNA 18: 1897-1909
