VapC6, a ribonucleolytic toxin regulates thermophilicity in the crenarchaeote Sulfolobus solfataricus

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

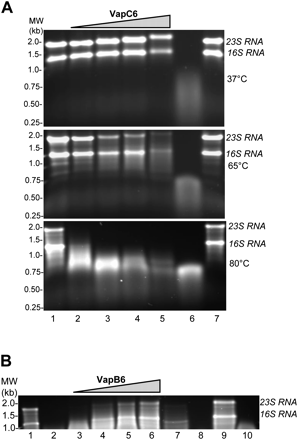

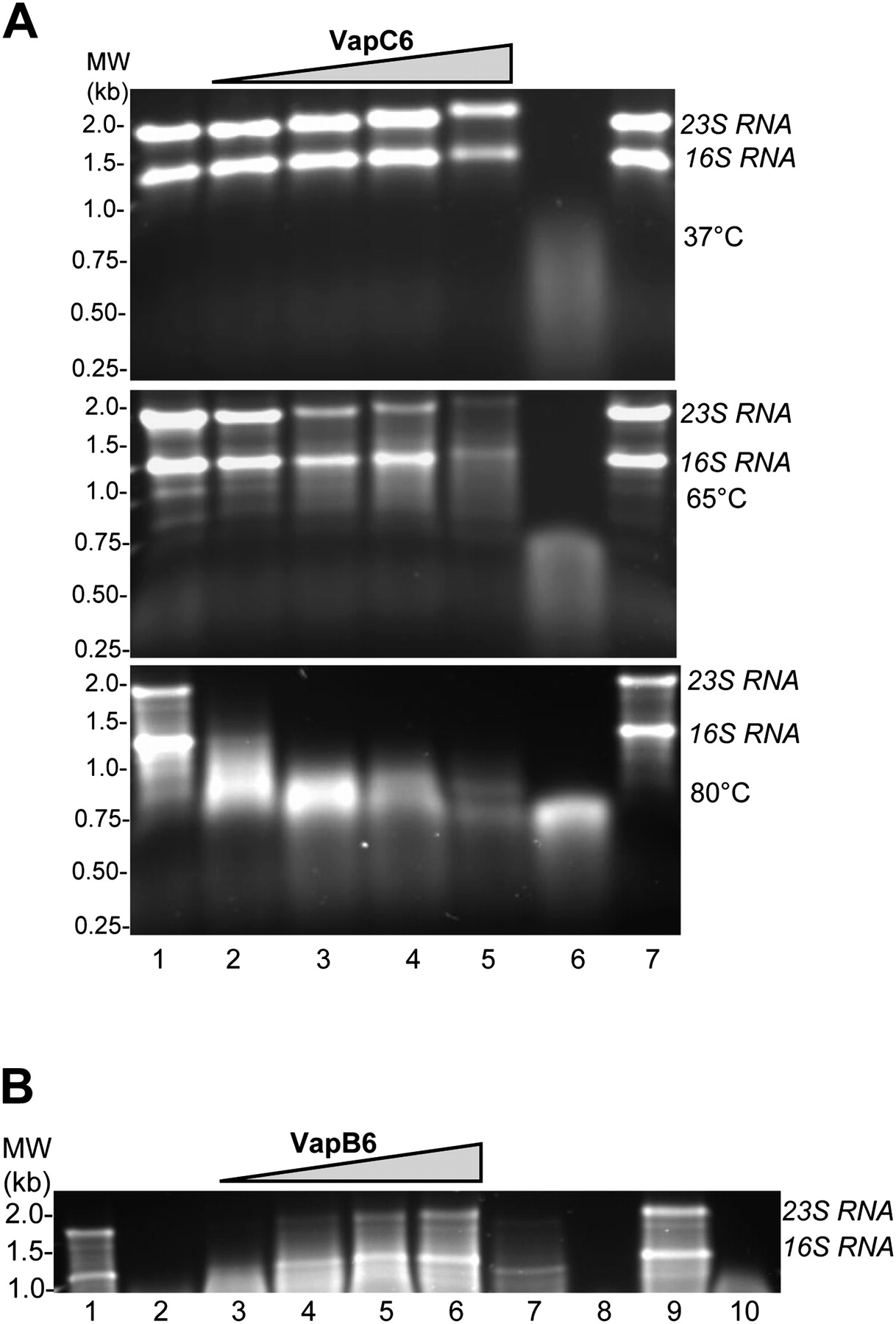

FIGURE 6.
FIGURE 6.

Characterization of VapC63′His activity and interaction with VapB63′His. (A) VapC63′His activity. S. solfataricus total RNA (4 μg) was treated at various temperatures with increasing amounts of VapC63′His. (Lane 1) No VapC63′His; (lanes 2–5) 0.75 μg, 2.25 μg, 3.75 μg, 7.5 μg VapC63′His; (lane 6) Ribonuclease A; (lane 7) VapC6 mock extract. (B) VapB63′His effect. VapB63′His effect on VapC63′His ribonuclease activity toward total Sso RNA was examined at 80°C . (Lane 1) Sso RNA (4 μg); (lane 2) VapC63′His (0.75μg); (lanes 3–6) VapB63′His and VapC63′His at ratios of 1:1, 5:1, 10:1 and 20:1; (lane 7) VapB6 mock extract and VapC63′His at 20:1; (lane 8) Ribonuclease A; (lane 9) VapB63′His; (lane 10) VapC63′His pretreated at 95°C.
