Viral SELEX reveals individual and cooperative roles of the C-box and G-box in HIV-2 replication

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

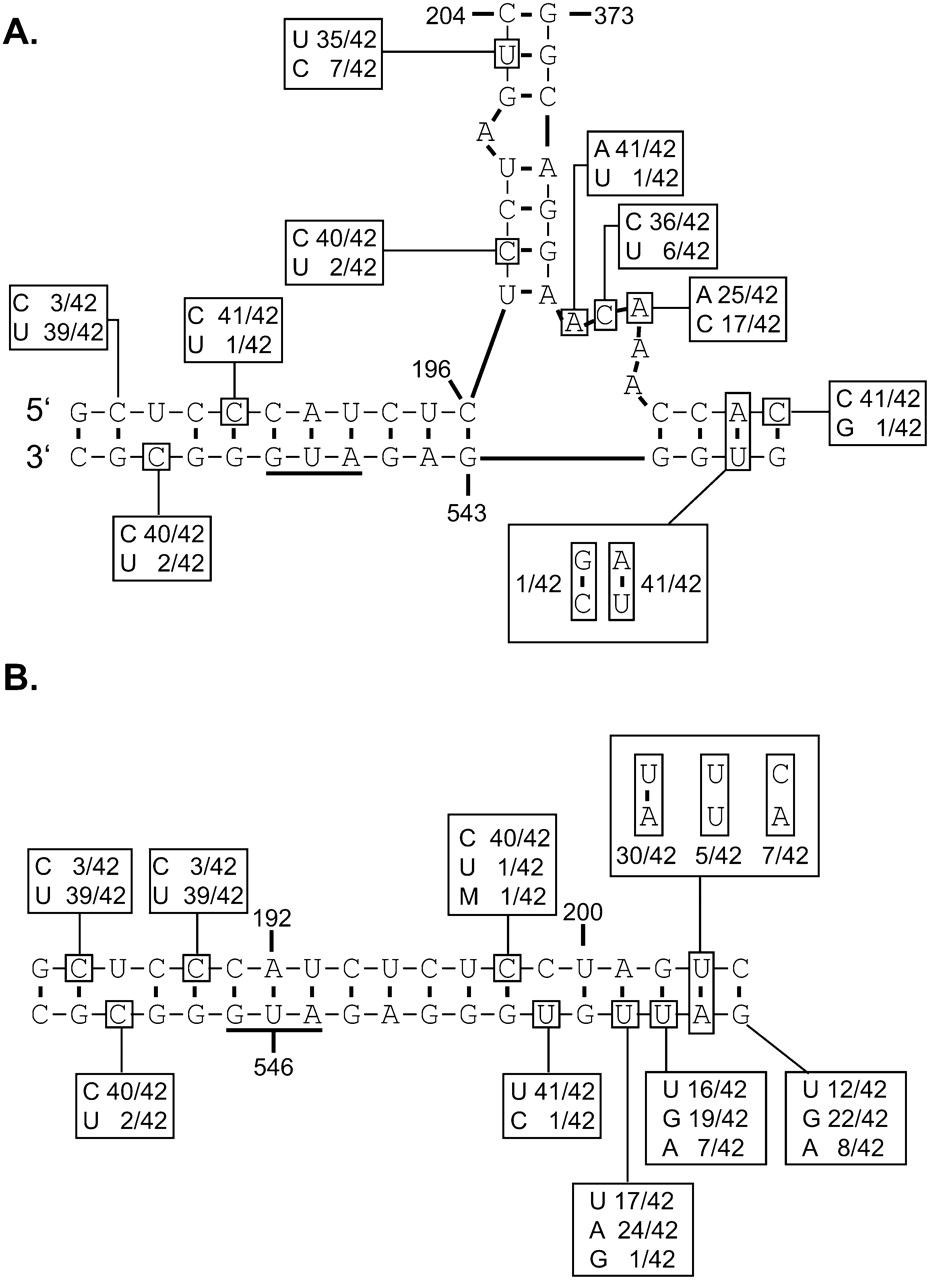

FIGURE 8.
FIGURE 8.

Nucleotide identities of nonconserved position among natural isolates of HIV-2 and SIV superimposed on the two potential CGI conformations. The consensus branched (A) and extended (B) CGI structures from the analysis of 42 HIV-2 and SIV sequences from the HIV Sequence Compendium 2010 are indicated, with the proportions of alternative base pairs shown (Kuiken et al. 2010). Those nucleotides not absolutely conserved are boxed.

This Article

  1. Published in Advance May 25, 2011, doi: 10.1261/rna.2564311 RNA 17: 1307-1320
