Differentiating analogous tRNA methyltransferases by fragments of the methyl donor

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

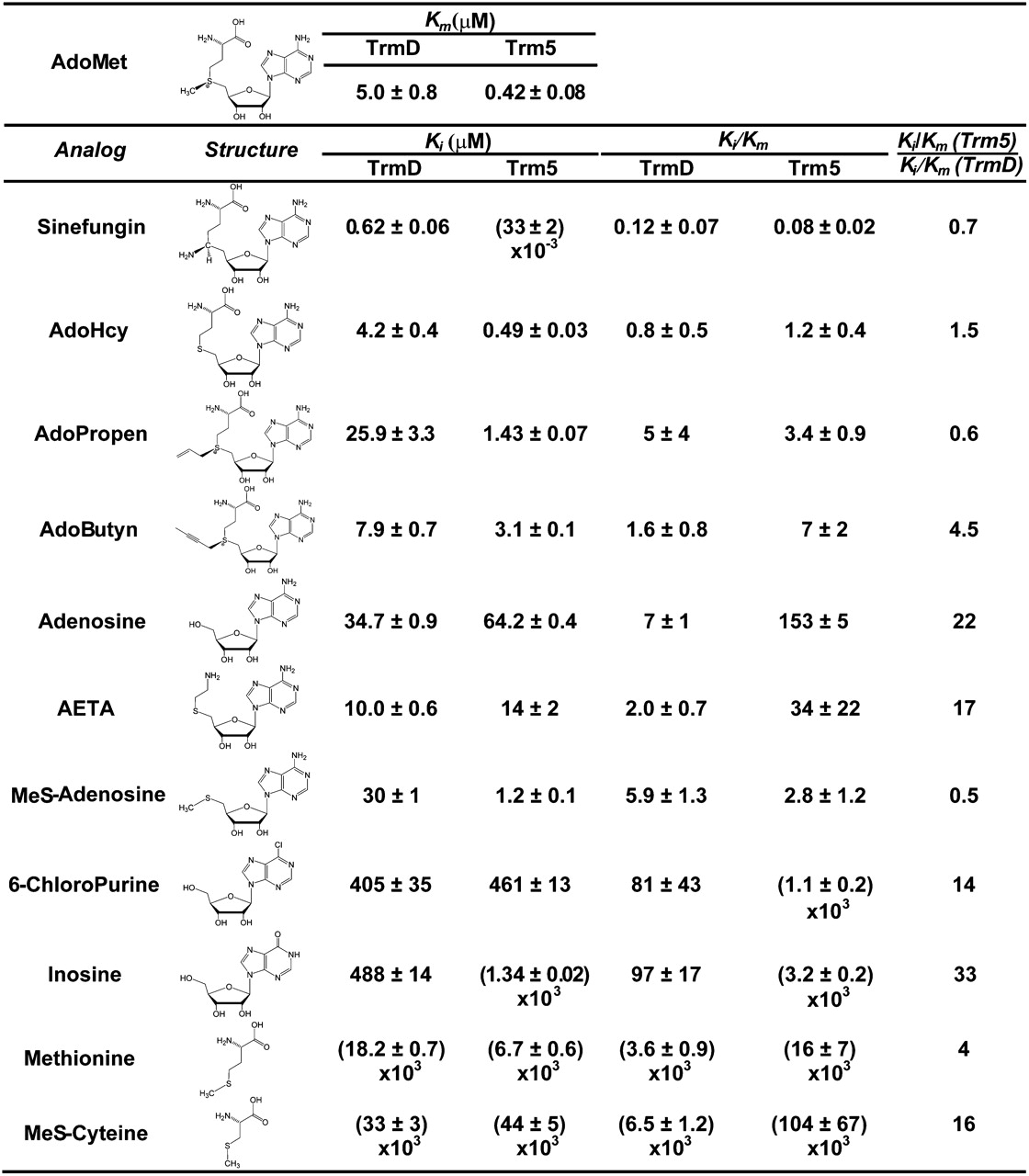

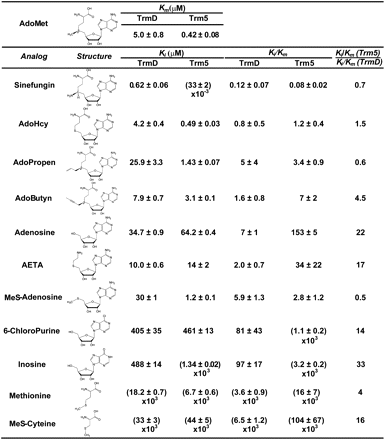

FIGURE 2.
FIGURE 2.

Kinetic parameters for E. coli TrmD and M. jannaschii Trm5. Michaelis constants Km (AdoMet) and inhibition constants (Ki) for all analogs were measured in steady state and are reported as mean values of at least two independent determinations (± standard deviation values). Ki/Km is calculated from respective values for each enzyme and the ratio [Ki/Km (Trm5)]/[Ki/Km (TrmD)] is reported. Also see Supplemental Figure S1.

This Article

  1. Published in Advance May 20, 2011, doi: 10.1261/rna.2706011 RNA 17: 1236-1246
