Autoregulation of Fox protein expression to produce dominant negative splicing factors

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

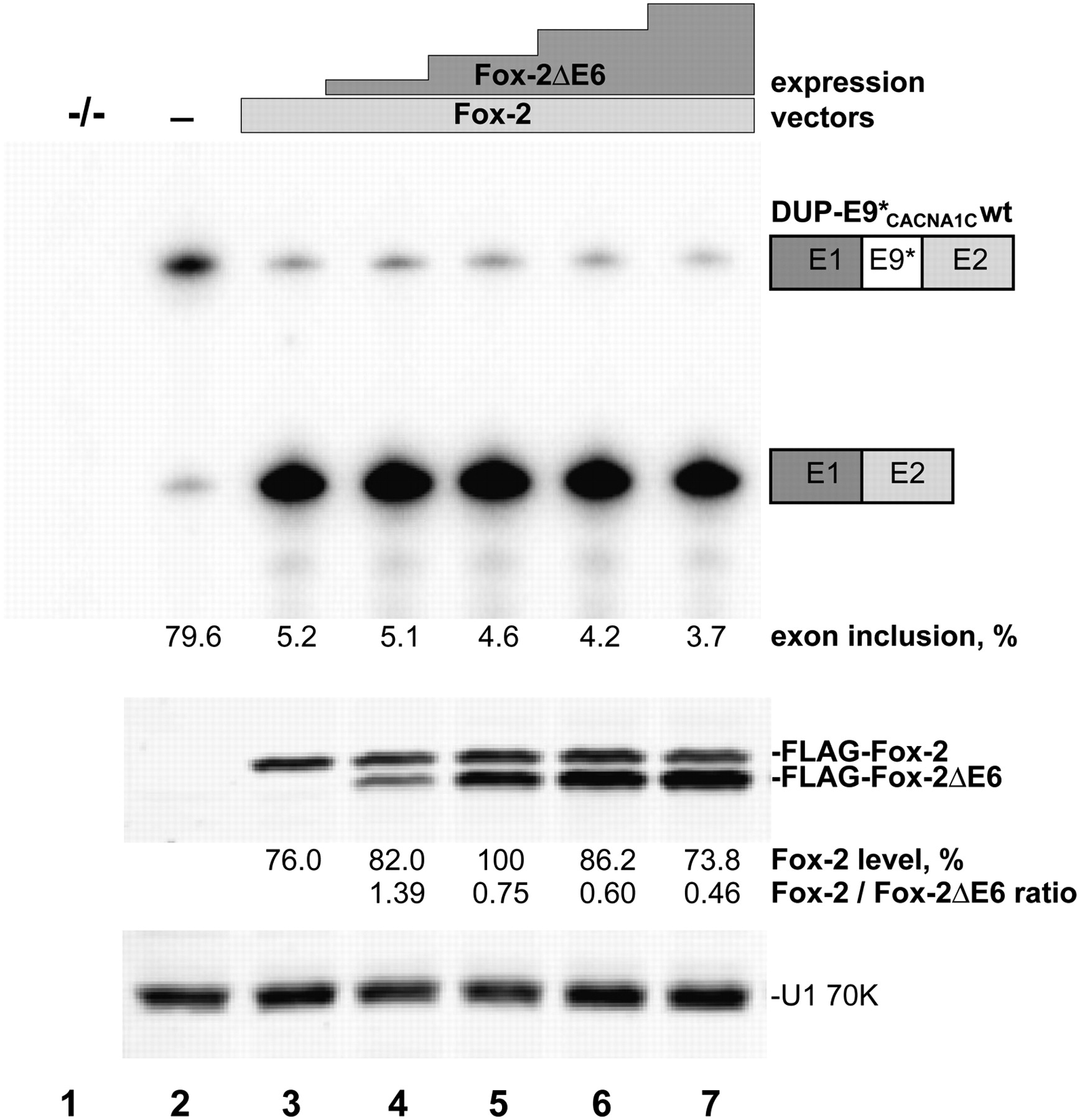

FIGURE 7.
FIGURE 7.

Fox-2ΔE6 does not alter Fox-dependent splicing repression. HEK293 cells were transfected with the minigene DUP-E9*CACNA1Cwt, containing a middle exon inhibited by Fox. FLAG-Fox-2 and FLAG-Fox-2ΔE6 were cotransfected into these cells as in Figures 5 and 6. The splicing of the middle exon and the expression of the Fox proteins were determined as above.

This Article

  1. Published in Advance December 30, 2009, doi: 10.1261/rna.1838210 RNA 16: 405-416
