Autoregulation of Fox protein expression to produce dominant negative splicing factors

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

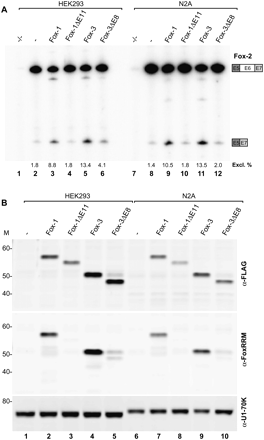

FIGURE 4.
FIGURE 4.

Fox-1 and Fox-3, but not their ΔRRM isoforms inhibit the inclusion of Fox-2 exon 6. (A) RT-PCR analysis of the endogenous Fox-2 exon 6 splicing. Human HEK293 and mouse neuroblastoma N2A cells were transiently transfected with FLAG-tagged Fox-1, Fox-1ΔE11, Fox-3, and Fox-3ΔE8 as indicated. (Lanes ) A control transfection with vector not bearing a protein reading frame was carried out in parallel. (Lanes −/−) Samples prepared similarly to the adjacent lanes , except that reverse transcriptase was omitted. The fraction of Fox-2 mRNA excluding exon 6 is shown below each lane as a percent of the total. (B) The recombinant proteins were detected by Western blotting using anti-FLAG and anti-FoxRRM antibodies. Anti-U1 70K Western is carried out in parallel as a loading control.

This Article

  1. RNA 16: 405-416
