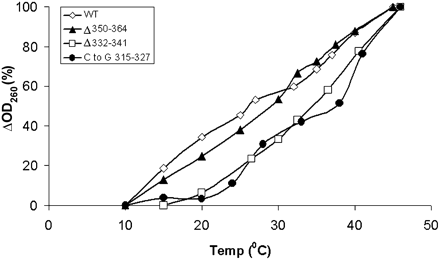

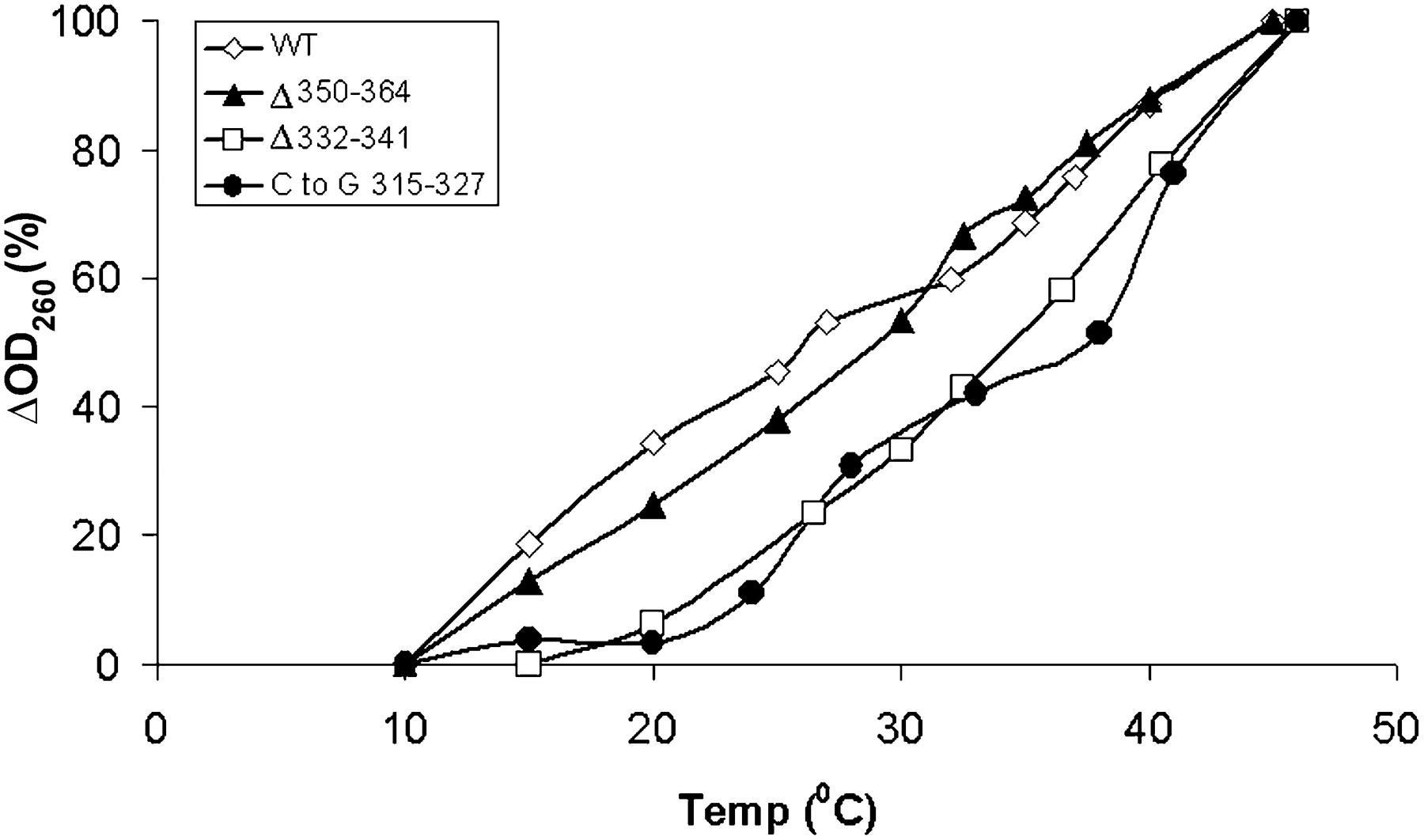

RNA melting curves of the wild-type and mutated 1–472 RNA fragments. Representative melting profiles were obtained by measuring the optical density of the RNA solutions (0.012 mg/mL) at temperatures that increased by increments of 5°C. The RNA was allowed to equilibrate for 10 min at each temperature, prior to monitoring the absorbance at 260 nm. The change in absorbance for each temperature (ΔOD260) was calculated relative to the starting point. The ΔOD260 values for each curve are expressed as relative numbers that range from 0% to 100% (the ΔOD260 at the highest temperature served as 100%).
