The nuclear experience of CPEB: Implications for RNA processing and translational control

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

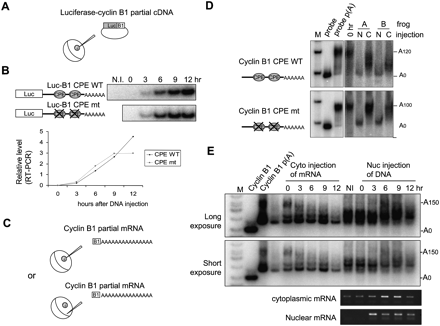

FIGURE 6.
FIGURE 6.

The nuclear experience of CPE does not mediate mRNA nuclear export or cytoplasmic deadenylation. (A) Diagram of experiment procedure for comparison of RNA export between CPE-containing and CPE-lacking luciferase mRNA. (B) Cytoplasmic luciferase mRNA levels following plasmid injection as determined by radioactive semiquantitative RT-PCR (upper panel). The relative mRNA levels are graphed in the lower panel. (C) Diagram of experiment procedure for comparison of deadenylation between cytoplasm-injected and nucleus-injected cyclin B1 mRNA. (D) Deadenylation assay. A radiolabled and polyadenylated partial cyclin B1 mRNA was injected into the nucleus or cytoplasm of oocytes; after overnight incubation, the cytoplasmic fraction was collected for RNA extraction and analysis on a denaturing polyacrylamide gel. (E) Deadenylation assay of CPE-containing RNA. Oocytes were injected with in vitro transcribed RNA or plasmid DNA; RNA collected over several hours was analyzed by ligation-mediated PAT assay (see Materials and Methods). Lower panels are ethidium bromide stained agarose gels showing RT-PCR products of cyclin B1 RNA; cyclin B1 mRNA started to accumulate ∼3 h after injection in the nucleus and ∼6 h in the cytoplasm. Note that because the RT-PCR does not distinguish endogenous from ectopic cyclin B1 3′ UTR, a band is present in the cytoplasmic fraction of noninjected oocytes.

This Article

  1. RNA 16: 338-348
