Conserved long noncoding RNAs transcriptionally regulated by Oct4 and Nanog modulate pluripotency in mouse embryonic stem cells

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

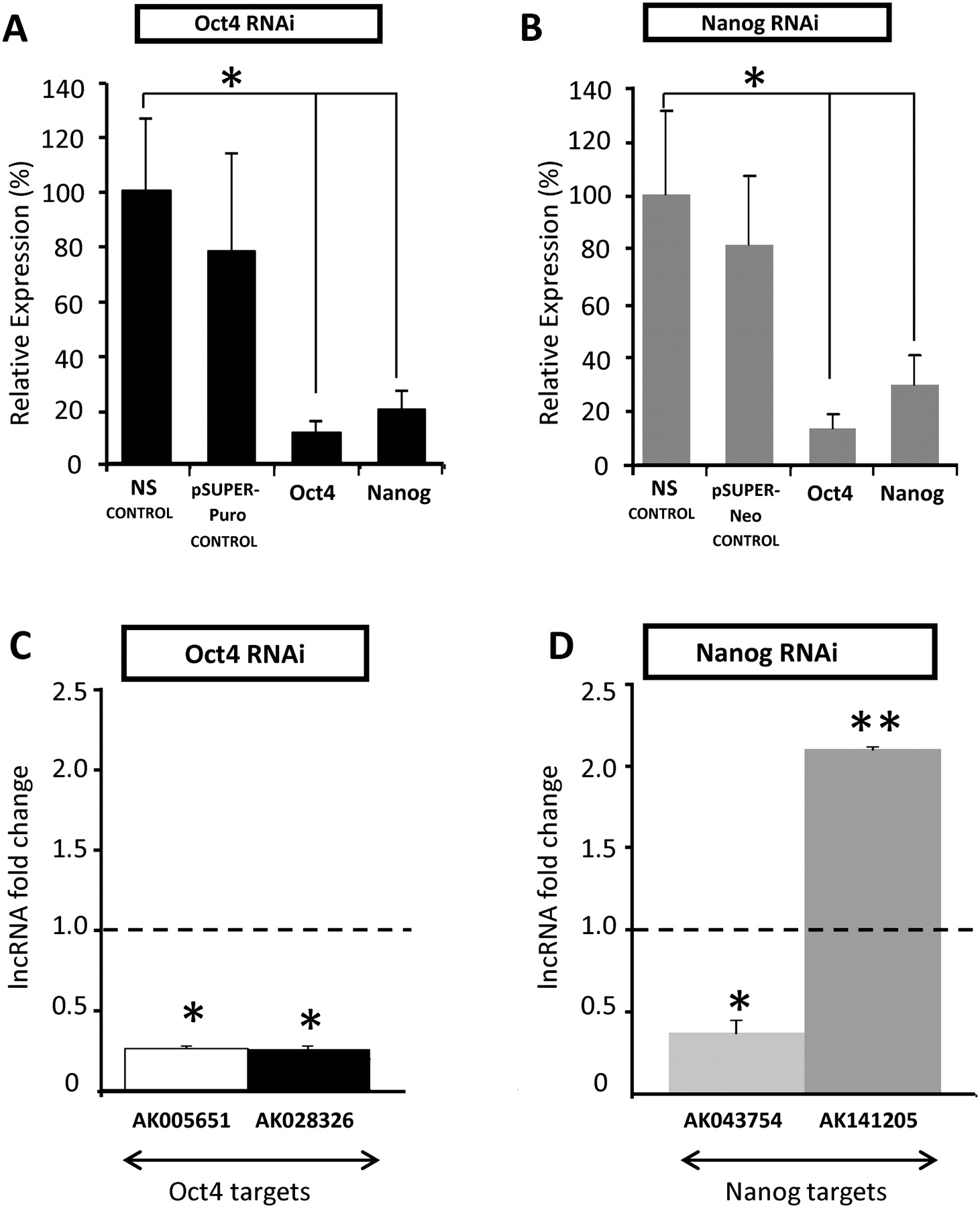

FIGURE 3.
FIGURE 3.

Differential expression of lncRNA upon robust Oct4 and Nanog RNAi knockdown. (A) shRNA-directed knockdown resulted in greater than or ∼80% reduction of Oct4 mRNA and Nanog mRNA, respectively, compared with the non-silencing control (NS control) and the pSUPER-PURO vector-only control (pSUPER-PURO control), 3 d post-transfection. (B) shRNA-directed knockdown resulted in comparable levels of Nanog mRNA reduction and Oct4 mRNA compared with the NS control and the pSUPER-NEO vector-only control (pSUPER-NEO control), 3 d post-transfection. (C) Oct4 RNAi resulted in down-regulation of the two putative Oct4 targets, AK005651 and AK028326. (D) Nanog RNAi resulted in down-regulation of the putative Nanog target AK043754 and up-regulation of AK141205. (Asterisks) Significant difference from control samples (*, P < 0.05; **, P < 0.01) relative to the NS control (dotted black line).
