RiboSys, a high-resolution, quantitative approach to measure the in vivo kinetics of pre-mRNA splicing and 3′-end processing in Saccharomyces cerevisiae

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

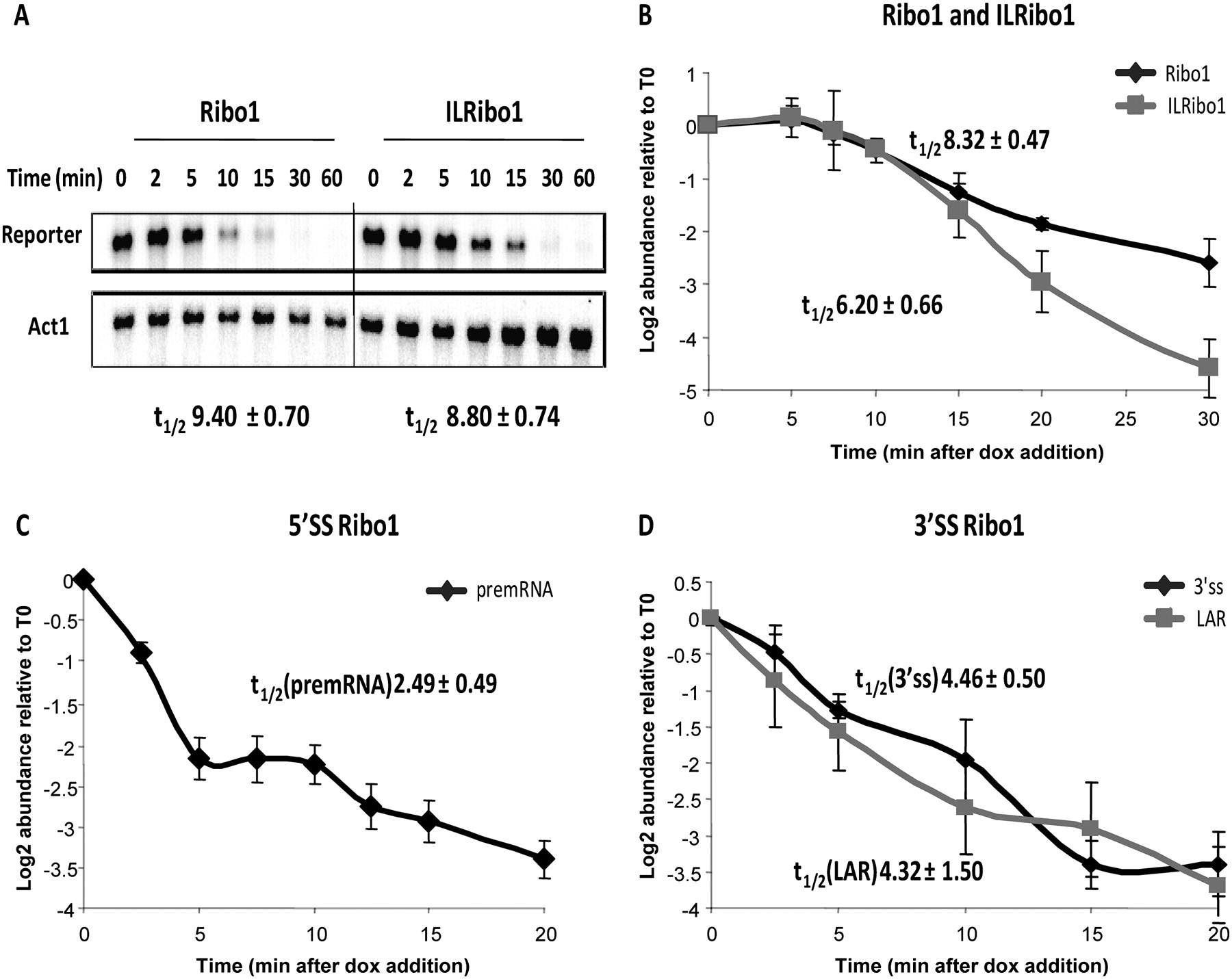

FIGURE 4.
FIGURE 4.

Kinetics of repression and turnover of Ribo1 reporter transcripts using the RiboSys tetOFF strains. The tetOFF strains with intron-containing Ribo1 or intonless ILRibo1 (A,B), mutant 5′SSRibo1 (C), or mutant 3′SSRibo1 (D) reporters were grown in SD minimal medium with doxycycline (4 μg/ mL) added at time 0 to initiate repression of transcription. (A) Northern blot analysis of Ribo1 and ILRibo1 reporters showing relative mRNA levels following repression. Apparent half-lives of the reporter transcripts are shown below the blot. (B–D) Repression of RiboSys reporters showing relative abundance (log2) of the Ribo1 and ILRibo1 mRNAs (B), 5′SSRibo1 pre-mRNA (C), and 3′SSRibo1 lariat-exon2 intermediate (D) assayed by RT-qPCR of the 3′SS region (3′SS) or using lariat-specific RT-qPCR (LAR). The apparent half-lives, calculated from the linear parts of the curves, are displayed.

This Article

  1. RNA 16: 2570-2580
