Intragenic transcription of a noncoding RNA modulates expression of ASP3 in budding yeast

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

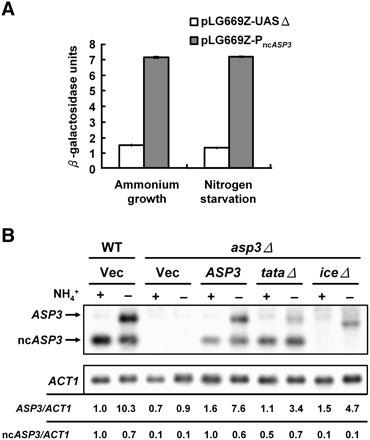

FIGURE 4.
FIGURE 4.

Expression of the short transcript is regulated by an intragenic control element but not the TATA element of ASP3. (A) Reporter assays of the wild-type strain with an empty vector (pLG669Z-UASΔ) or a plasmid containing the ASP3(306-657) coding region upstream of the LacZ reporter gene (pLG669Z-PncASP3) were conducted under ammonium-containing or nitrogen starvation conditions. The β-galactosidase activities shown are means of three independent measurements. (B) Total RNAs were extracted from wild-type and asp3Δ mutant strains containing an empty vector (Vec), wild-type (ASP3), TATA box-deleted (tataΔ), or intragenic control element-deleted (iceΔ) expressing plasmid (pRS316 backbone) in ammonium-containing medium and under nitrogen starvation. The ASP3 and ncASP3 signals determined by Northern blotting were normalized to ACT1 and are displayed below the blots.

This Article

  1. RNA 16: 2085-2093
