A single C. elegans PUF protein binds RNA in multiple modes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

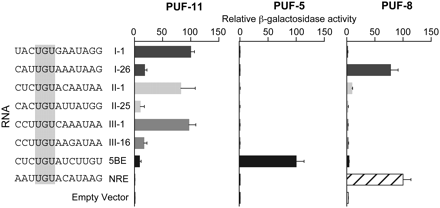

FIGURE 5.
FIGURE 5.

PUF proteins with different specificities. Three-hybrid analysis of different C. elegans PUF proteins. Relative binding of RNAs to PUF-11 was normalized to RNA I-1; binding to PUF-5 was normalized to 5BE; and binding to PUF-8 was normalized to NRE.

This Article

  1. Published in Advance April 15, 2009, doi: 10.1261/rna.1545309 RNA 15: 1090-1099
