Characterization of a thermostable archaeal polynucleotide kinase homologous to human Clp1

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

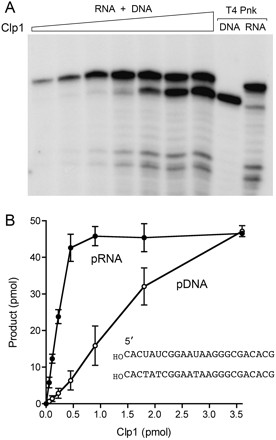

FIGURE 4.
FIGURE 4.

RNA is the preferred phosphate acceptor for PhoClp1. Reaction mixtures (10 μL) containing 50 mM Tris-acetate (pH 6.5), 10 mM MgCl2, 500 μM [γ32P]ATP, 5 μM each of 24-mer 5′-OH DNA and RNA oligonucleotides (of equivalent sequences depicted in B), and PhoClp1 as specified in B were incubated for 15 min at 55°C. Control reactions contained 10 U of T4 polynucleotide kinase (Pnk) plus either the DNA or RNA substrate. The products were analyzed by denaturing PAGE and visualized by autoradiography (A). The extents of DNA and RNA phosphorylation were quantified by scanning the gel and are plotted as a function of input PhoClp1 in B. Each datum is the average of three separate titration experiments. Error bars denote the standard deviation.

This Article

  1. RNA 15: 923-931
