Characterization of a mimivirus RNA cap guanine-N2 methyltransferase

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

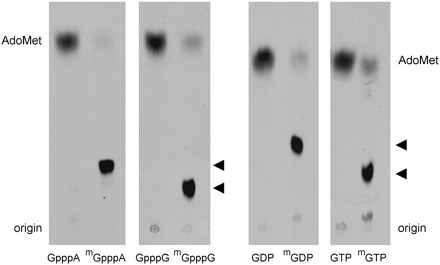

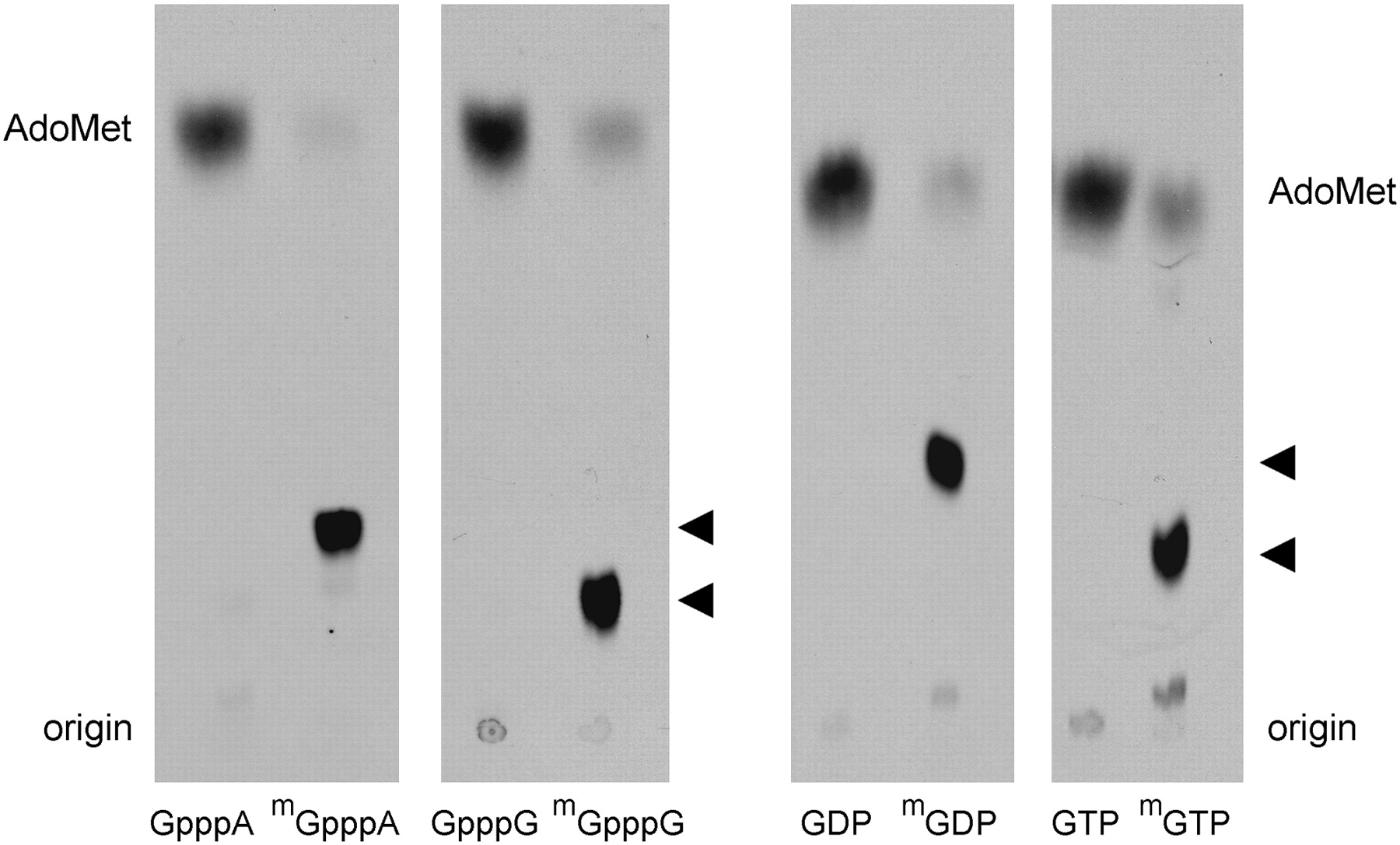

FIGURE 3.
FIGURE 3.

Methyl acceptor specificity of MimiTgs. Reaction mixtures (10 μL) containing 50 mM Tris-acetate (pH 6.0), 5 mM DTT, 50 μM [3H-CH3]AdoMet, 1 mM methyl acceptor as specified, and 1 μg MimiTgs were incubated for 60 min at 37°C. Aliquots (4 μL) were spotted on PEI-cellulose TLC plates, which were developed either with 0.05 M (NH4)2SO4 (for reactions with GpppA, m7GpppA, GpppG, and m7GpppG as methyl acceptors) or 0.1 M (NH4)2SO4 (for reactions with GDP and m7GDP as methyl acceptors) or 0.2 M (NH4)2SO4 (for reactions with GTP, and m7GTP as methyl acceptors). The chromatograms were treated with Enhance and 3H-labeled material was visualized by autoradiography. The methyltransferase reaction products m2,7GpppA, m2,7GpppG, m2,7GDP, and m2,7GTP are denoted by arrowheads at the right of the chromatograms.
