The linear form of a group II intron catalyzes efficient autocatalytic reverse splicing, establishing a potential for mobility

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 2.
FIGURE 2.

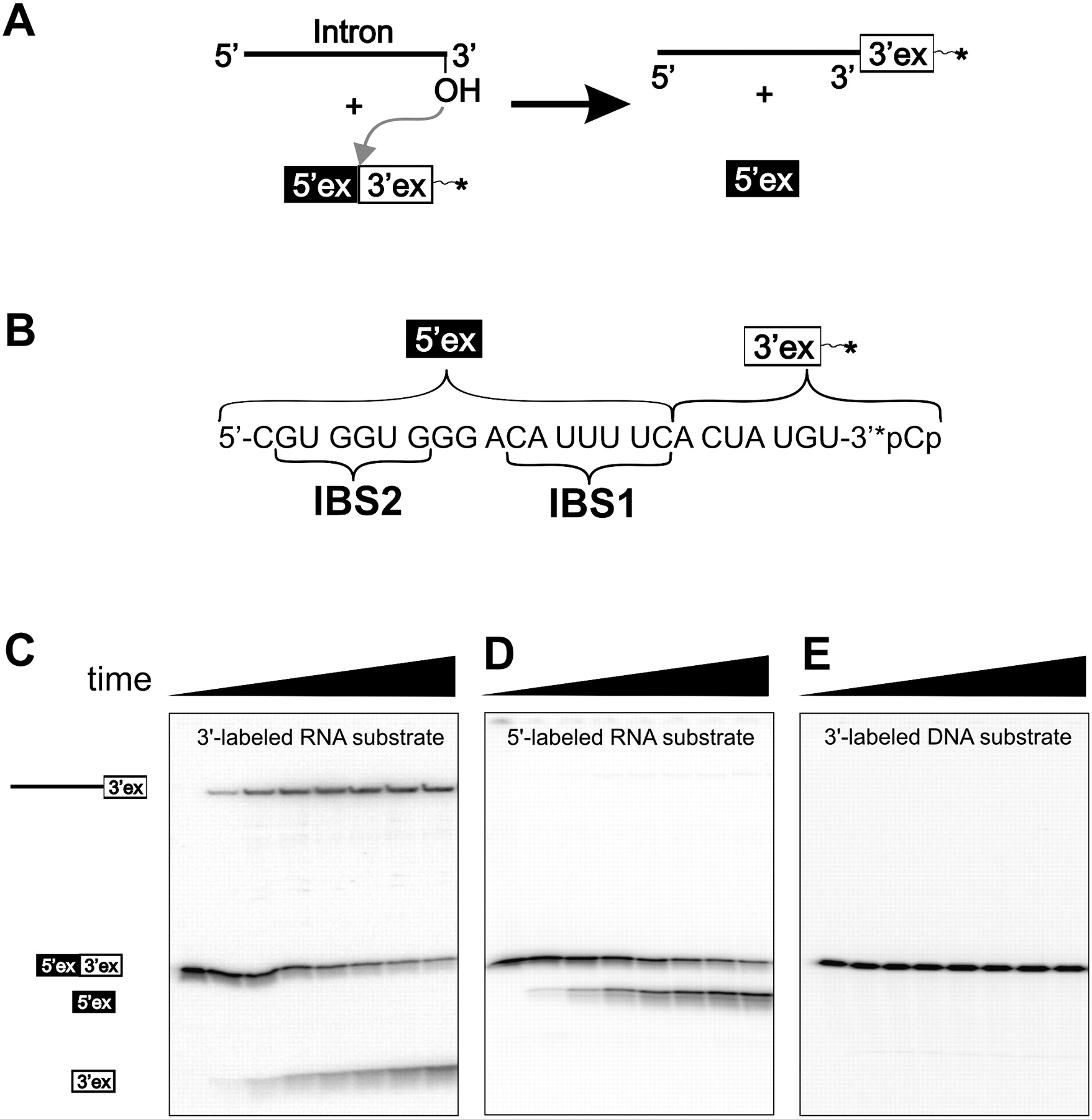

Single turnover reverse-splicing assay. (A) Schematic of the reverse-splicing reaction. (B) Substrate RS1. 5′- And 3′-exonic sections, as well as intron binding sites IBS1 and IBS2, are indicated. (C) Time course (0–30 min) of the reaction between linear intron and 3′-end-labeled RNA substrate RS1. Observable species are indicated on the left side. (D) Time course (0–30 min) of the reaction between 5′-triphosphorylated linear intron and 5′-end-labeled RNA substrate RS1. (E) Time course (0–300 min) of the reaction between linear intron and 3′-end-labeled DNA substrate DS1.

This Article

  1. RNA 15: 473-482
