Characterization of a heat-stable enzyme possessing GTP-dependent RNA ligase activity from a hyperthermophilic archaeon, Pyrococcus furiosus

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

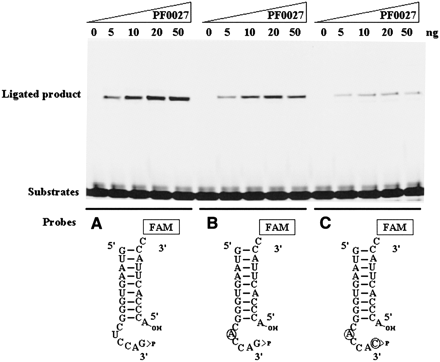

FIGURE 5.
FIGURE 5.

Consensus ribonucleotide sequences in tRNA anticodon loop structure are required for ligation reaction by PF0027 protein. Three different substrates bearing 2′,3′-cyclic phosphate and 5′-OH termini were used for the ligation reaction. The reaction was carried out with 0–50 ng of purified PF0027 protein for 15 min at 37°C in the presence of 1 mM GTPγS. (Circles) Mutated ribonucleotides. The substrates used were (A) tRNA5S-P and tRNA3S-FAM, (B) tRNA5SM1-P and tRNA3S-FAM, and (C) tRNA5SM2-P and tRNA3S-FAM.

This Article

  1. RNA 15: 420-431
