Pyrrolo-C as a molecular probe for monitoring conformations of the tRNA 3′ end

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

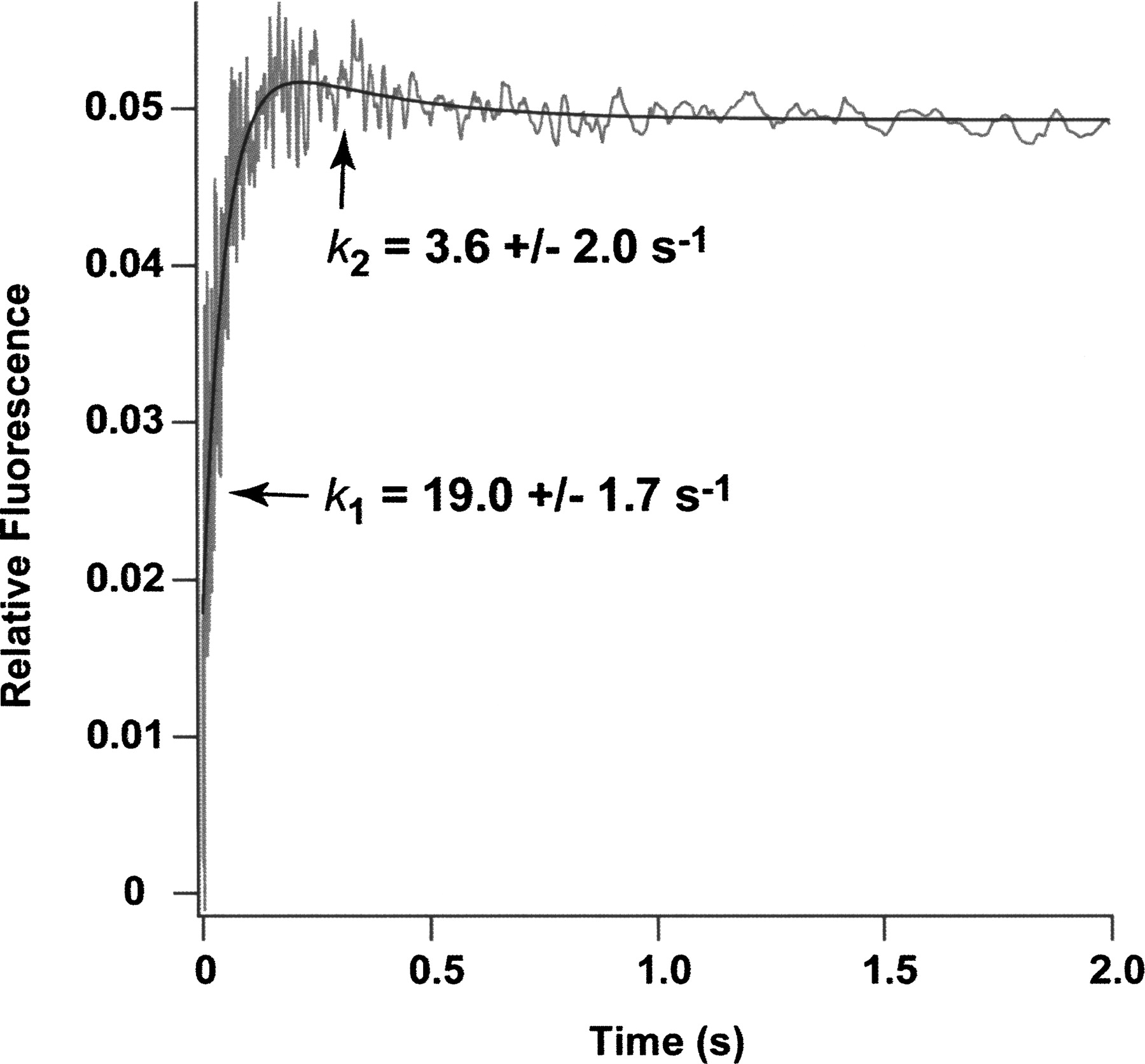

FIGURE 6.
FIGURE 6.

Translocation kinetics. PyC-labeled E. coli Cys-tRNACys (2 μM) was loaded onto the A site of the programmed E. coli ribosome (1 μM) and rapidly mixed with EF-G-GTP (1 μM). The fluorescence change of the translocation time course of the tRNA from A to P site is shown, displaying the rapid formation of an intermediate (k 1 = 19.0 ± 1.7 s−1) from the PRE complex and a slower conversion of the intermediate to the POST complex (k 2 = 3.6 ± 2.0 s−1).

This Article

  1. RNA 14: 2245-2253
