The sarcin–ricin loop of 23S rRNA is essential for assembly of the functional core of the 50S ribosomal subunit

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

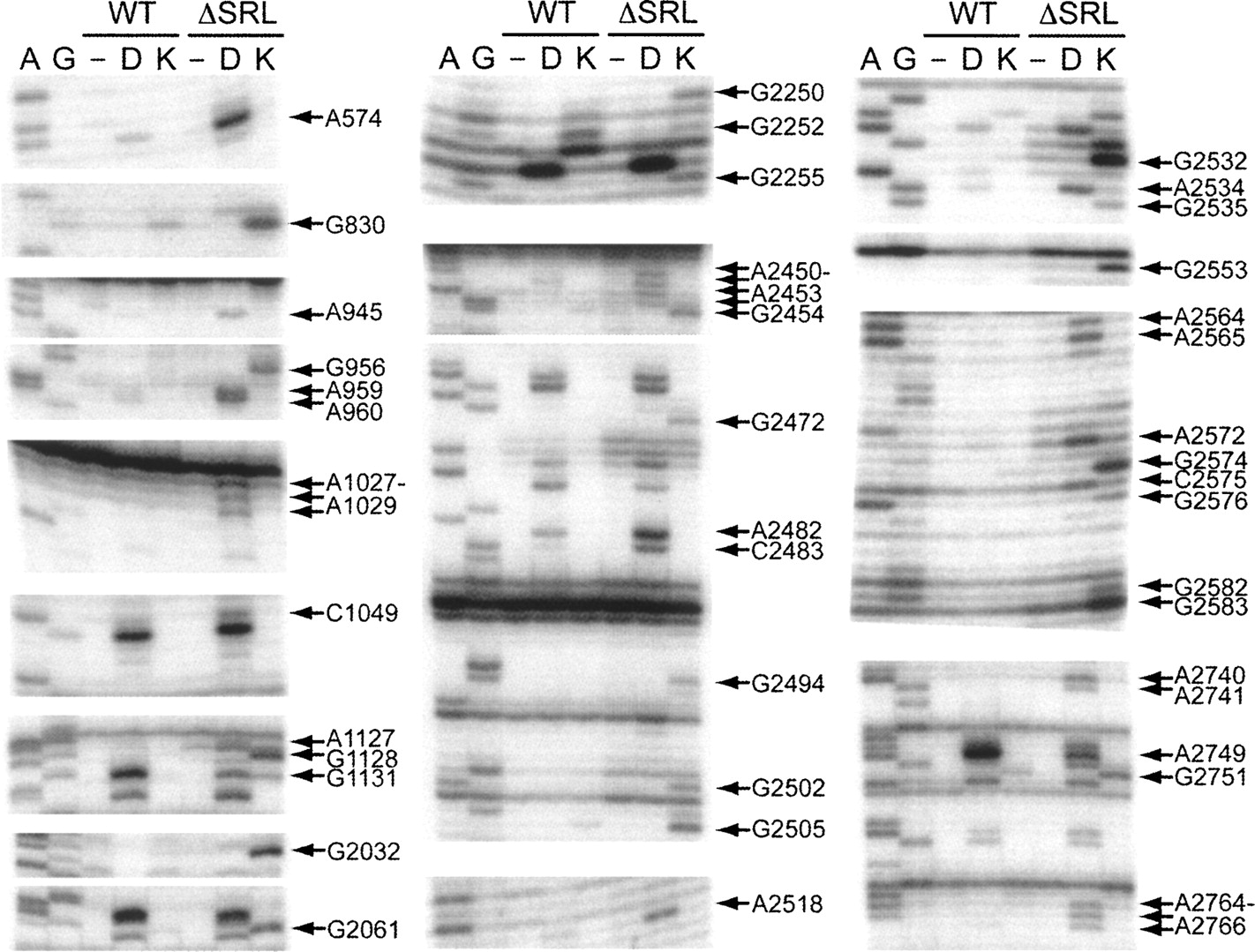

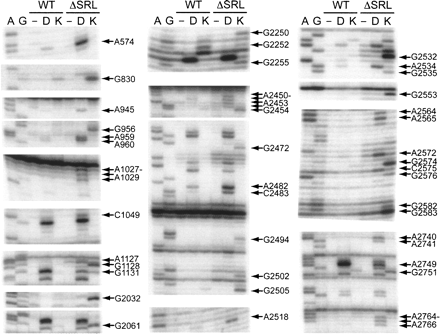

FIGURE 6.
FIGURE 6.

Deletion of the SRL causes structural changes in 23S rRNA. Primer-extension analysis of 23S rRNA extracted from WT or ΔSRL 50S subunits probed with D, dimethylsufate, or K, kethoxal. A and G are sequencing lanes; (−) unmodified subunits. Arrows indicate bases with altered reactivity in ΔSRL 50S subunits as compared to WT.

This Article

  1. Published in Advance August 28, 2008, doi: 10.1261/rna.1202108 RNA 14: 1999-2012
