Coplanar and coaxial orientations of RNA bases and helices

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

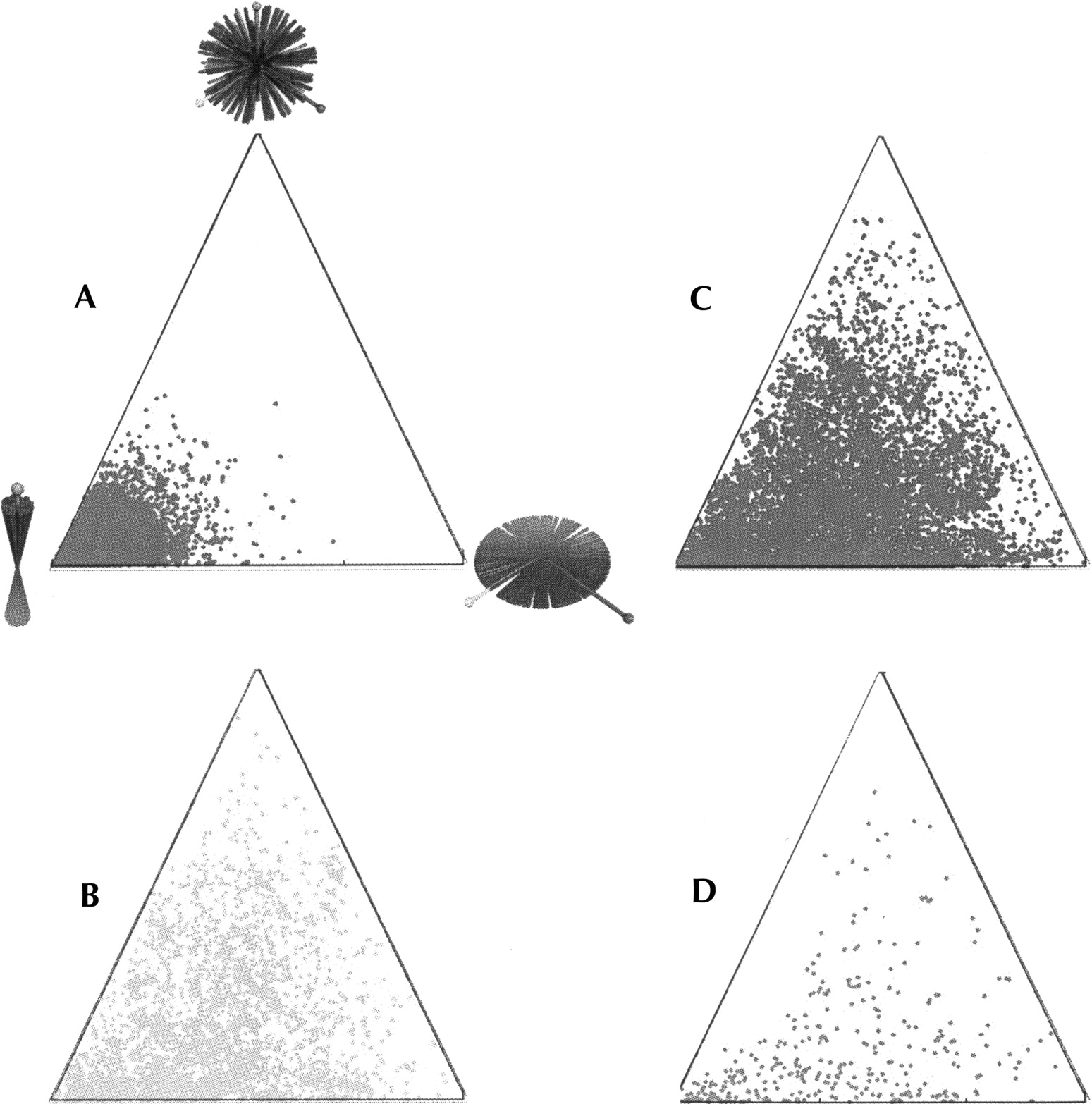

(A) Plot of barycentric coordinates for all known RNA helices as defined by Equation (2), demonstrating that most RNA helices are bipolar. (B–D) Corresponding plots for hairpins, junctions, and single-stranded regions, respectively.
