An mRNA sequence derived from the yeast EST3 gene stimulates programmed +1 translational frameshifting

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

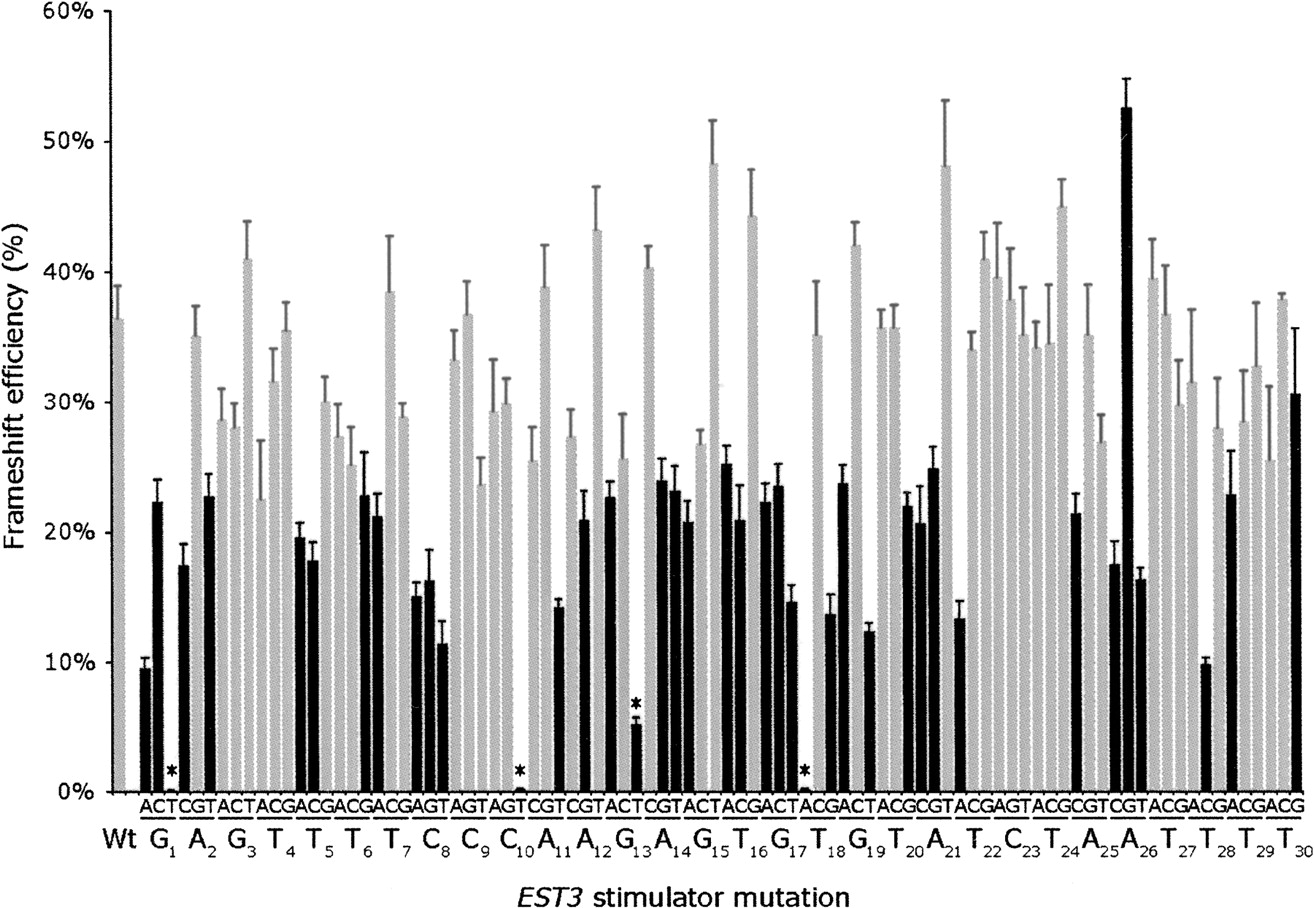

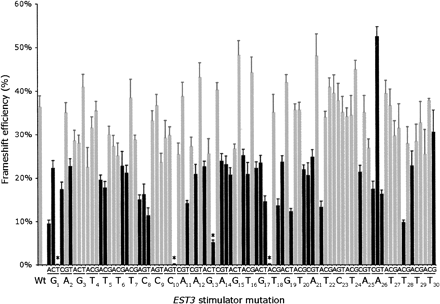

FIGURE 4.
FIGURE 4.

Missense mutagenesis of the EST3 stimulator. Each bar represents β-galactosidase activity (±SEM) expressed from a reporter involving a wild-type (Wt) or missense mutant EST3 stimulator. Each wild-type nucleotide appears below the graph with a subscript indicating the position; the identity of each tested mutation appears just above in groups of 3. Black bars represent results judged by T-test as different from wild type (P ≤ 0.005). Asterisks indicate mutations that introduce an in frame nonsense codon, which strongly reduces expression of lacZ.

This Article

  1. RNA 13: 606-613
