FIGURE 3.
FIGURE 3.

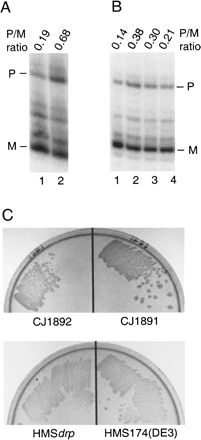

Growth and RNA analysis of strains containing one or four copies of the tRNAArg2 gene. (A) Primer extension analysis of RNAs derived from CJ1891 and CJ1892, using a 23S rRNA-specific probe. (Lane 1) CJ1891; (lane 2) CJ1892. The positions of mature (M) and precursor (P) rRNAs are noted, as are the P/M ratios. (B) Complementation of the rRNA processing defects by expression of plasmid-encoded tRNAArg2. (Lane 1) HMS174(DE3)/pMPM-T6; (lane 2) HMSdrp/pMPM-T6; (lane 3) HMSdrp/pArg2−arabinose; (lane 4) HMSdrp/pArg2+arabinose. The corresponding P/M ratios are noted. (C) Growth phenotype of strains containing (CJ1892 and HMSdrp) or lacking [CJ1891 and HMS174(DE3)] the argYZQ deletion, incubated at 37°C on LB-agar plates.
