Enrichment and analysis of RNA centered on ion pair reverse phase methodology

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

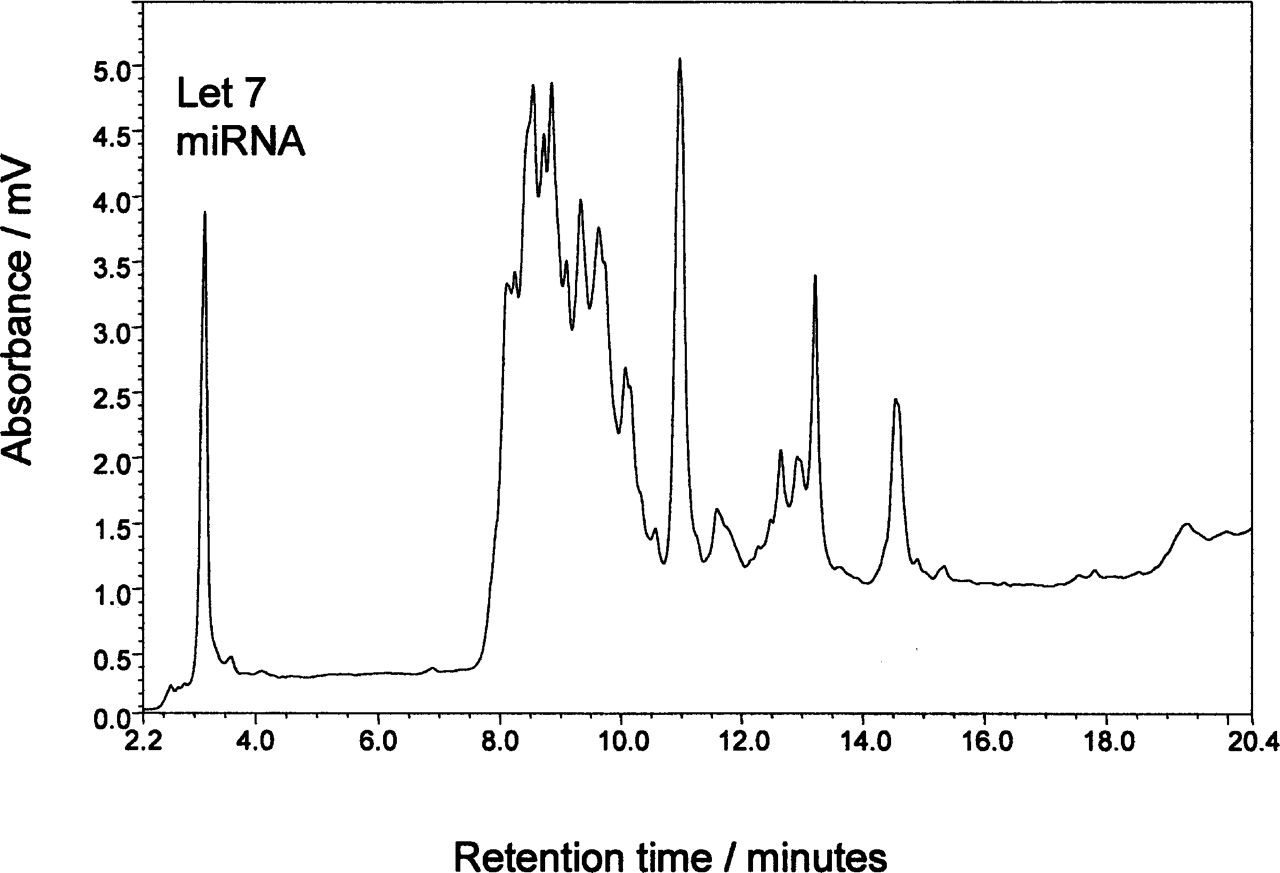

FIGURE 4.
FIGURE 4.

IP RP μHPLC chromatogram of the enriched small RNAs from total RNA spiked with synthetic let-7 miRNA. The chromatogram shows the analysis of the small RNA fraction obtained following the solid phase enrichment of a total RNA (20 μg) spiked with synthetic miRNA (let-7 150 ng) using gradient 5 (see Materials and Methods). The let-7 miRNA species is highlighted.

This Article

  1. Published in Advance February 22, 2006, doi: 10.1261/rna.2278606 RNA 12: 691-696
