AtCyp59 is a multidomain cyclophilin from Arabidopsis thaliana that interacts with SR proteins and the C-terminal domain of the RNA polymerase II

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

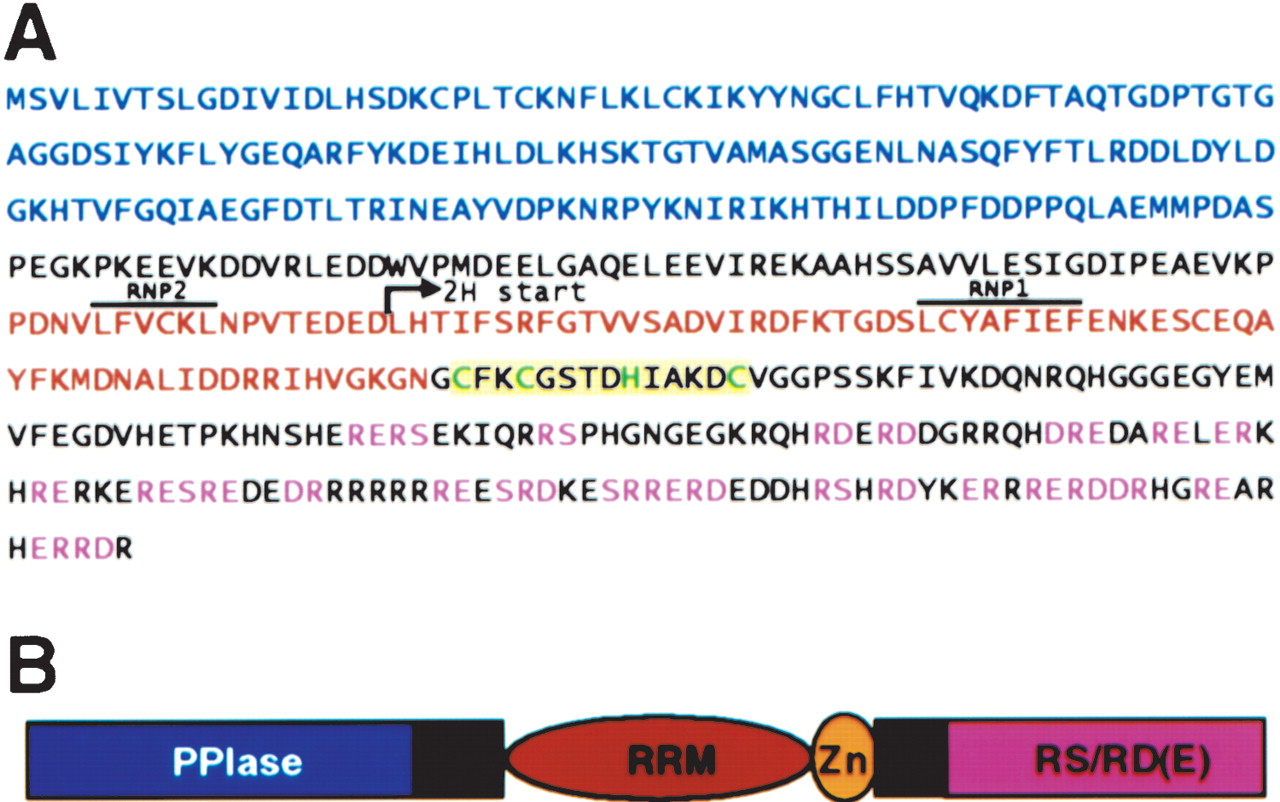

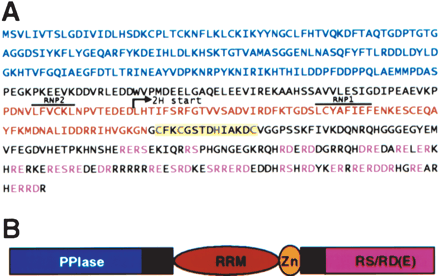

Sequence analysis of AtCyp59. (A) Protein sequence of Arabidopsis AtCyp59. The peptidyl-prolyl cis–trans isomerase (PPIase) domain is printed in blue letters, and the RNA recognition motif, (RRM) in red letters with RNP1 and RNP2 overlined. The CCHC zinc knuckle is printed on yellow background with CCHC in green letters. The RS, RD, and RE dipeptides are printed in pink letters. Position of the start of two-hybrid clone isolated with SCL33/SR33 is indicated by an arrow. (B) Schematic representation of AtCyp59 modular structure.

This Article

  1. Published in Advance February 22, 2006, doi: 10.1261/rna.2226106 RNA 12: 631-643
