Pyrrolo-C as a fluorescent probe for monitoring RNA secondary structure formation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

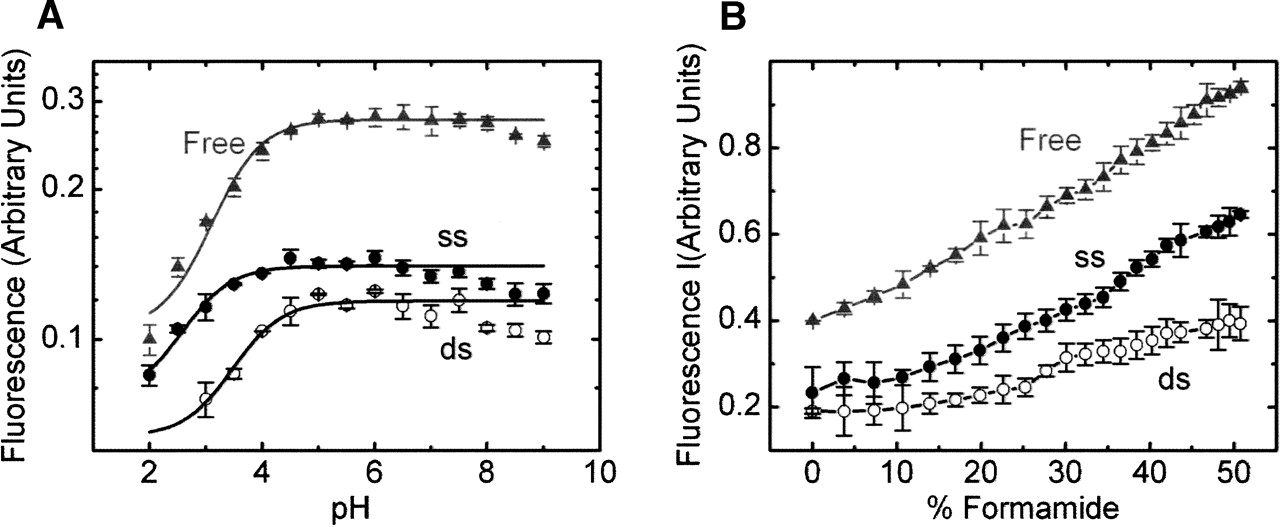

FIGURE 4.
FIGURE 4.

The relative fluorescence intensity of free pyrrolo-C ribonucleoside (gray triangles), ssRNA (filled circles), and dsRNA (open circles) as a function of pH (A) and (v/v)% content (B) of formamide in standard buffer (50 mM Tris, 25 mM MES-NaOH, 25 mM acetic acid–NaOH at pH 7.5, 100 mM NaCl) at 25°C. Errors are derived from at least two independent measurements.

This Article

  1. Published in Advance January 23, 2006, doi: 10.1261/rna.2165806 RNA 12: 522-529
