Recombinant viral RdRps can initiate RNA synthesis from circular templates

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

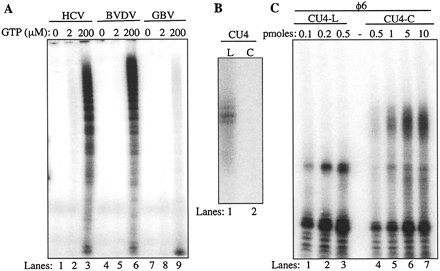

FIGURE 7.
FIGURE 7.

Use of linear and circular RNA templates by several recombinant RdRps. (A) RNA synthesis from +1C-C by purified recombinant RdRps from HCV, BVDV, and GBV. Each reaction was performed with different GTP concentrations to show that RNA synthesis required higher levels of GTP. Radiolabeled [α-32P]CTP, ATP, and UTP were present at 250 nM, 100 μM, and 100 μM, respectively. (B) Circularization of an RNA (CU4) from bacteriophage [phis]6. CU4 is a 22-nt RNA derived from the 3′-terminal sequence of the [phis]6 RNA genome (sequence: 5′-GGCCCCUUCGGGGGCUCUCUCU-3′). After ligation with T4 RNA ligase, the linear and circularized RNAs were purified from a denaturing gel and then used for 3′-terminal extension reaction in the presence of [α-32P]ATP with poly(A) polymerase. (C) RNA synthesis by the [phis]6 RdRp from the linear and circularized versions of CU4. The amount of input template in each reaction is denoted above the gel image.

This Article

  1. RNA 12: 303-312
