Distinct contributions of KH domains to substrate binding affinity of Drosophila P-element somatic inhibitor protein

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

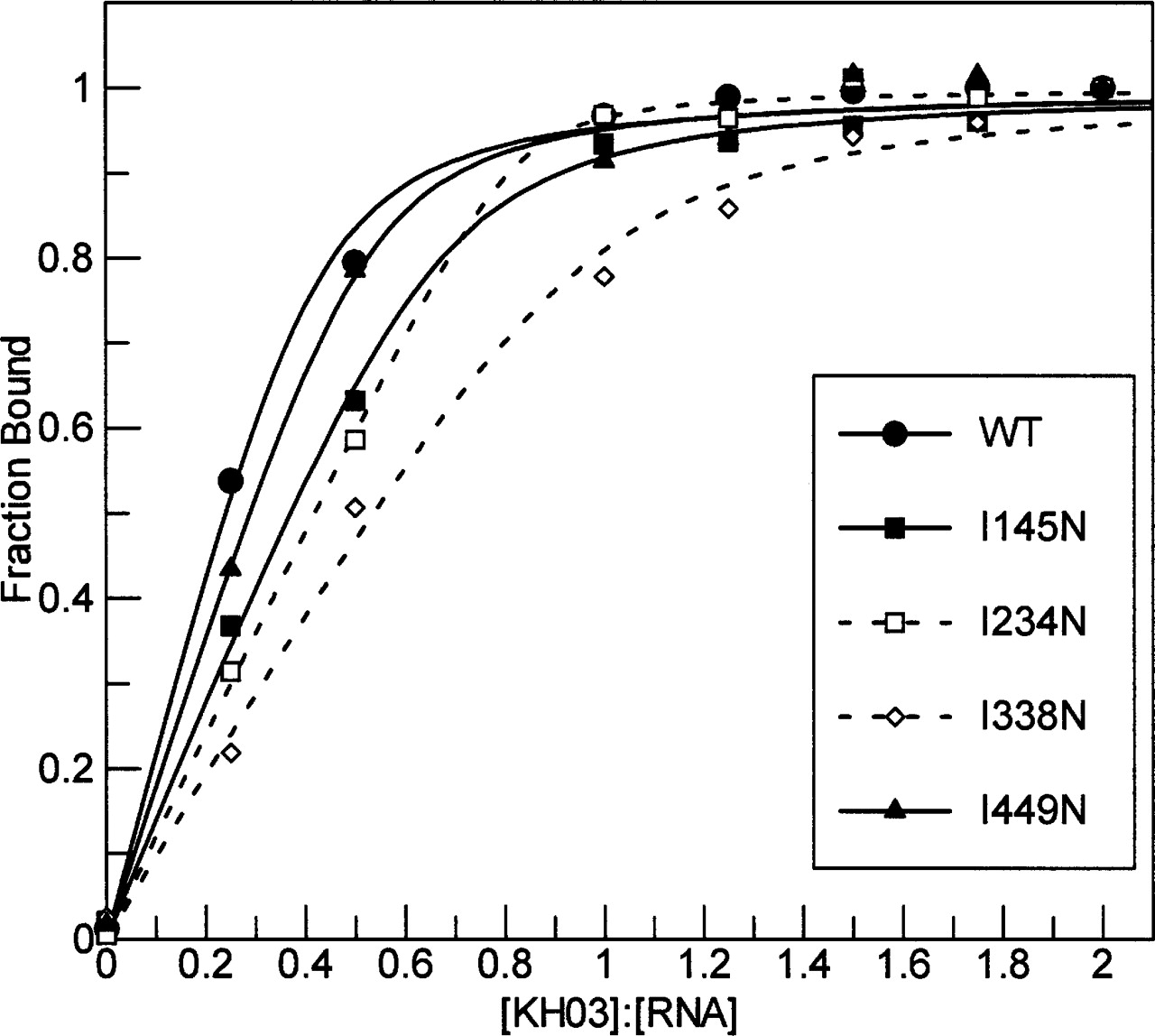

FIGURE 6.
FIGURE 6.

Titration experiments to determine active protein fraction. Wild-type or mutant PSI-KH03 was added to RNA in the ratios described. (•) Wild-type PSI-KH03, (▪) I145N, (□) I234N, (⋄) I338N, (▴) I449N. Each experiment was repeated two to four times, with one data set represented in the plot.
